| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | IEC 60134-1~2 |
| モデル番号: | AIC52114 |
| 最小注文数量: | 1セット |
| 価格: | $8000~$10000 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 90〜120days |
| 支払条件: | L/C、T/T、D/P |
| 供給の能力: | 10セット/月 |
| アフターサービス: | 12 時間 12 か月以内に応答 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | テスト標準: | IEC 60134-1～2 |
| ガス: | 空気とプロパン | 加熱: | プロパンバーナーとベンチュリ混合物 |
| テスト部屋: | 1000mm*2000mm*4000mm | エアインテーク: | 5000±500L/min |
| 吸気ダクトの長さ: | 1568mm | 電源: | AC220V、50/60Hz、1A |
| 公称光束: | 2000lm～3000lm | 公称色温度: | 2800K～3200K |
| レンズ光線: | 1.5m±0.1m調整可能 | チャンバーの寸法: | 3m×3m×3m(お客様ご用意) |
| ハイライト: | IEC 61034,Wire and Cable Smoke Density Tester,Cable Smoke Density Testing Machine |
||

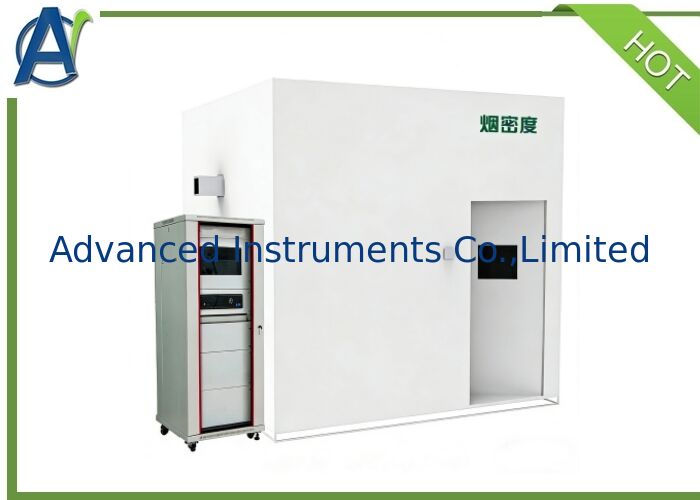

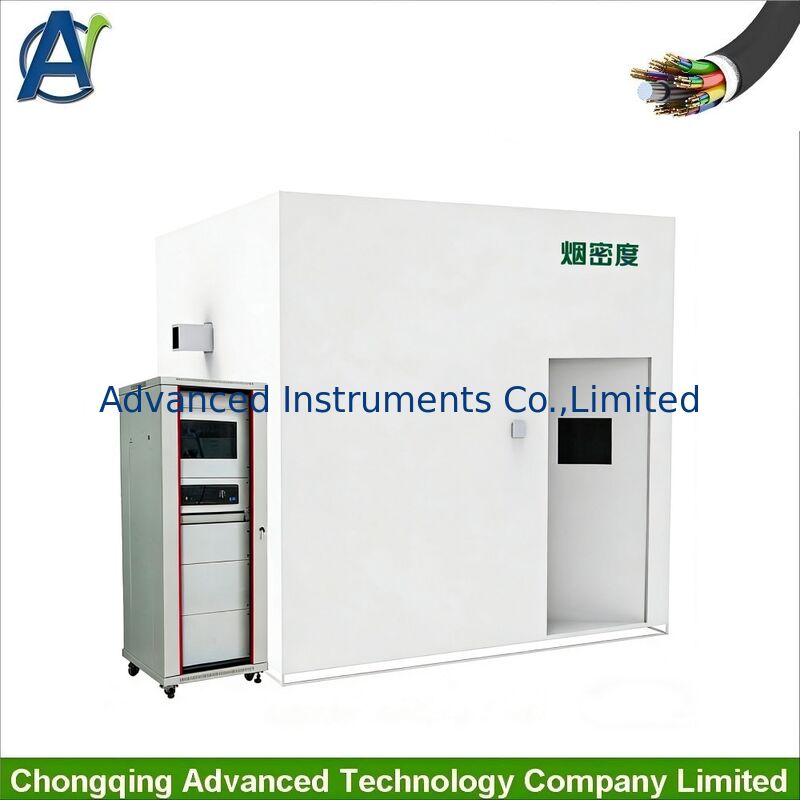

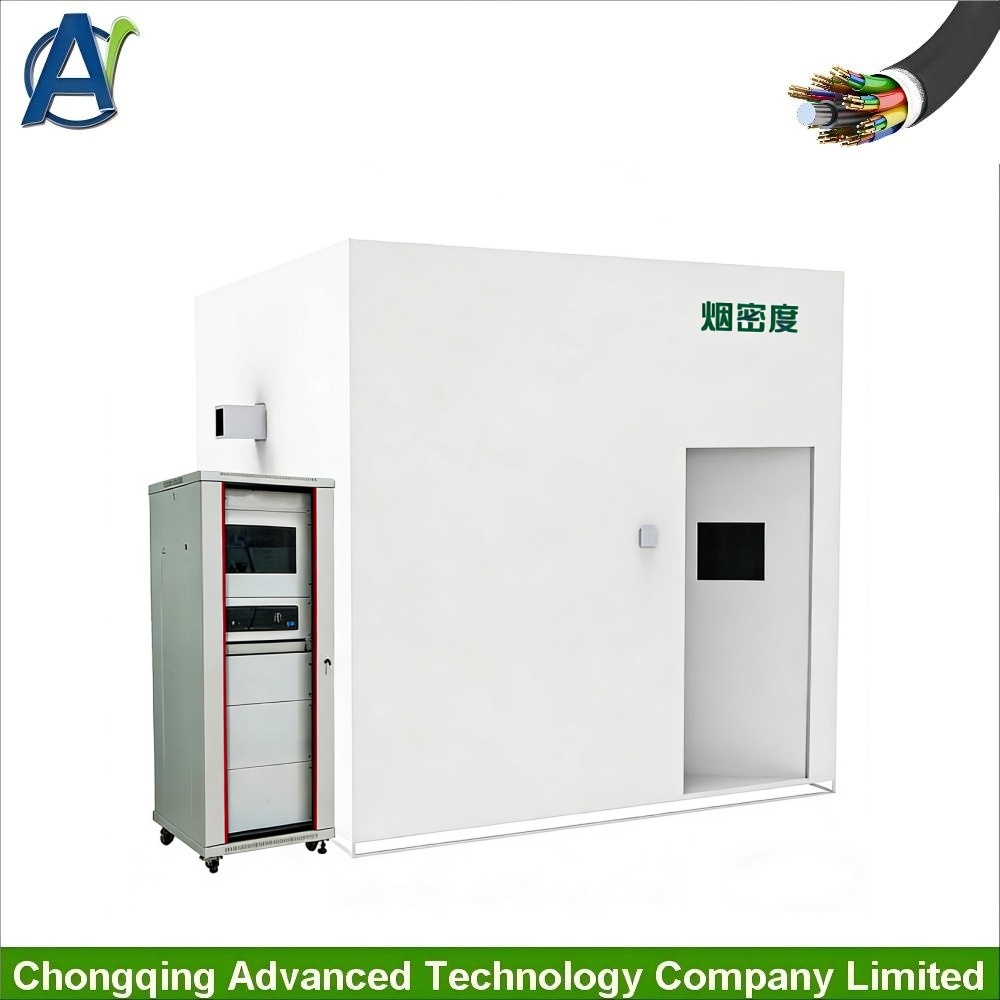

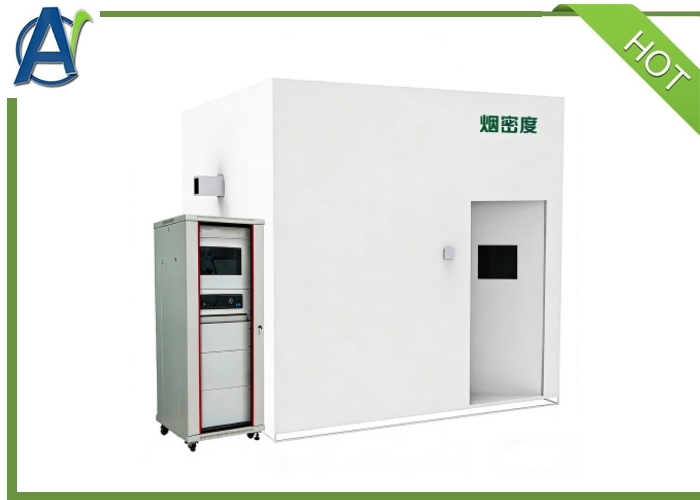

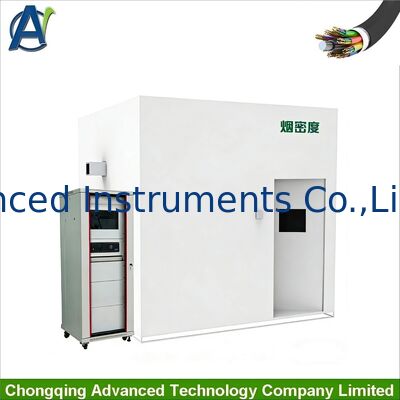

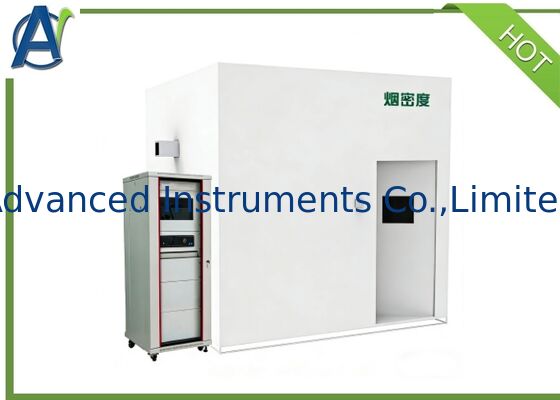

The 3M cube wire and cable smoke density tester is mainly used incable or optical cable combustion smoke density measurement system, which is in accordance with the latest GB/T17651 and lEC61034-2013 standards.
Test Index: Optical density (OD) and specific optical density (DS) of the smoke
Measuring Principle: Lambert - Beer Law
Measuring Method: The smoke density is expressed by the fraction of the light transmittance of smoke in the initial light transmittance measured by the optical system. Calculating the maximum specific optical density by the minimum percentage of light transmission.
Standards:
IEC 61034 -1~2 - 2013
GB/T17651.1~2-1998

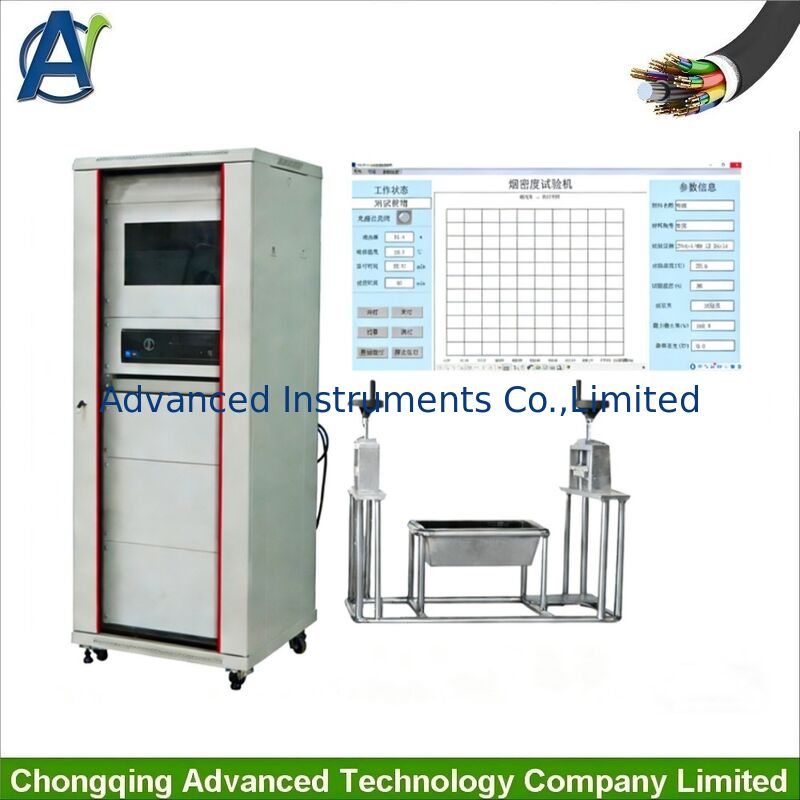

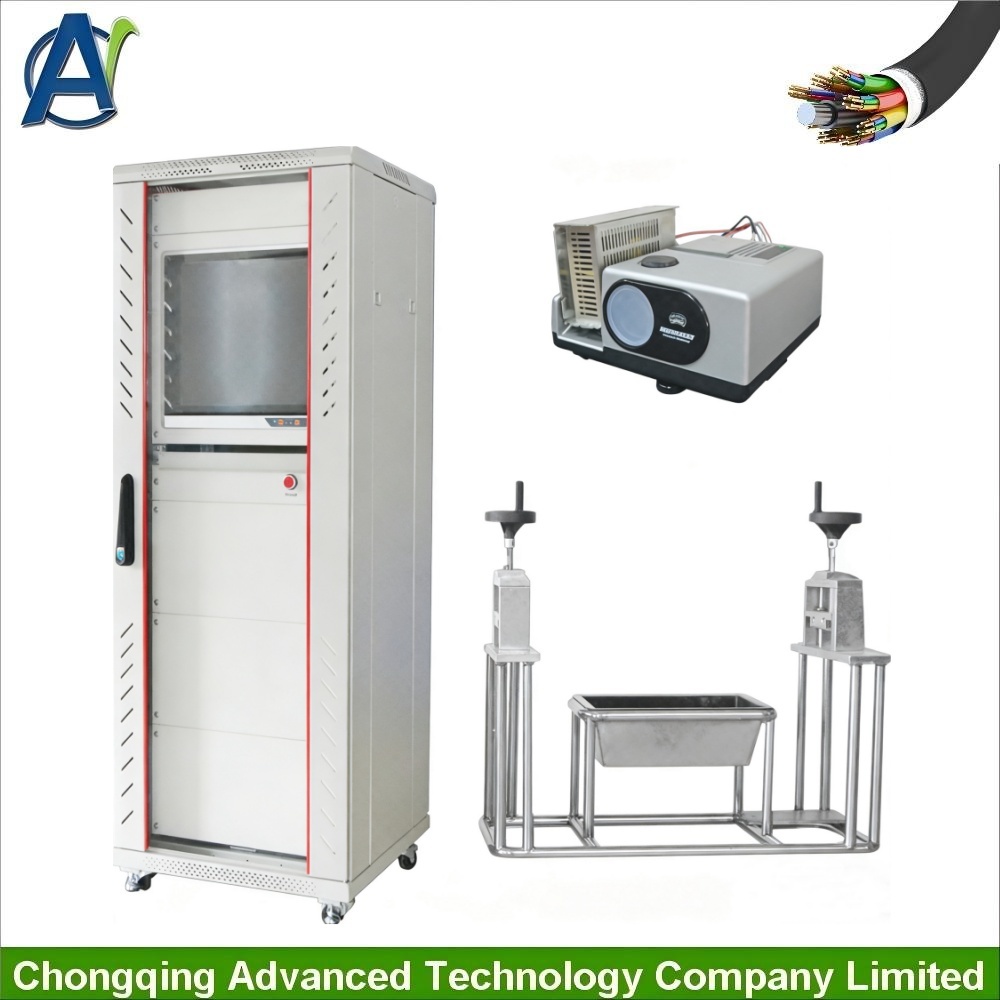

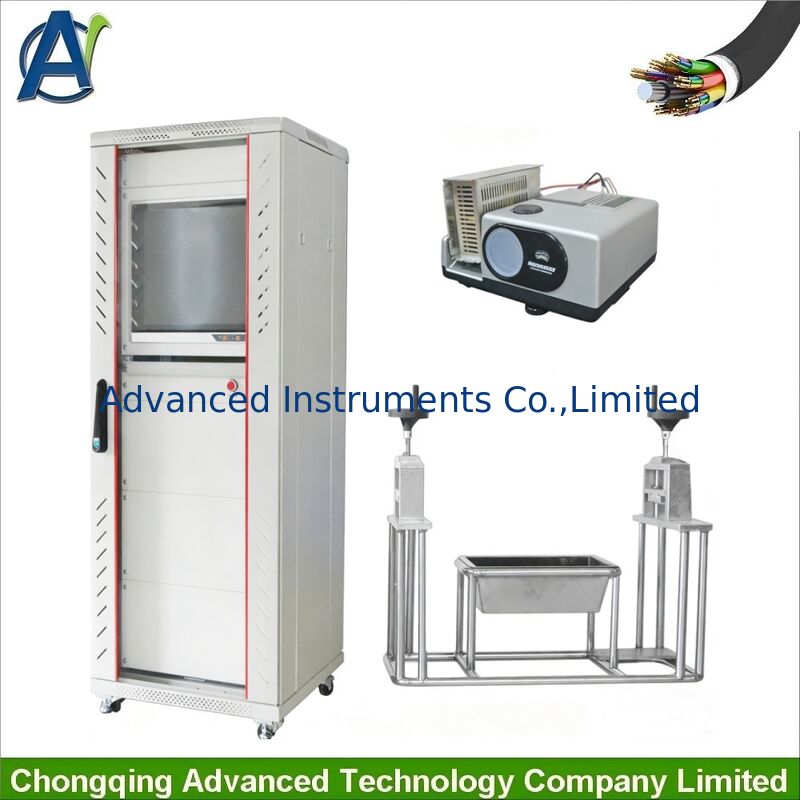

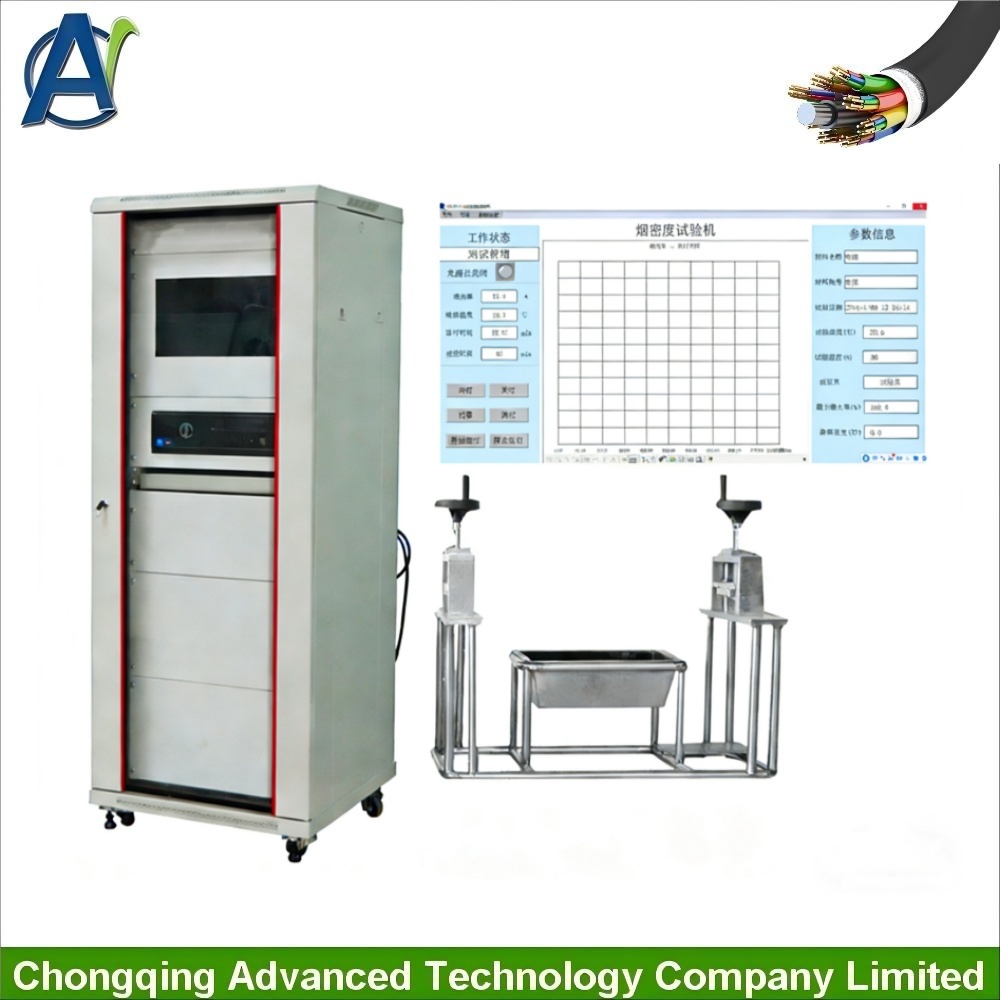

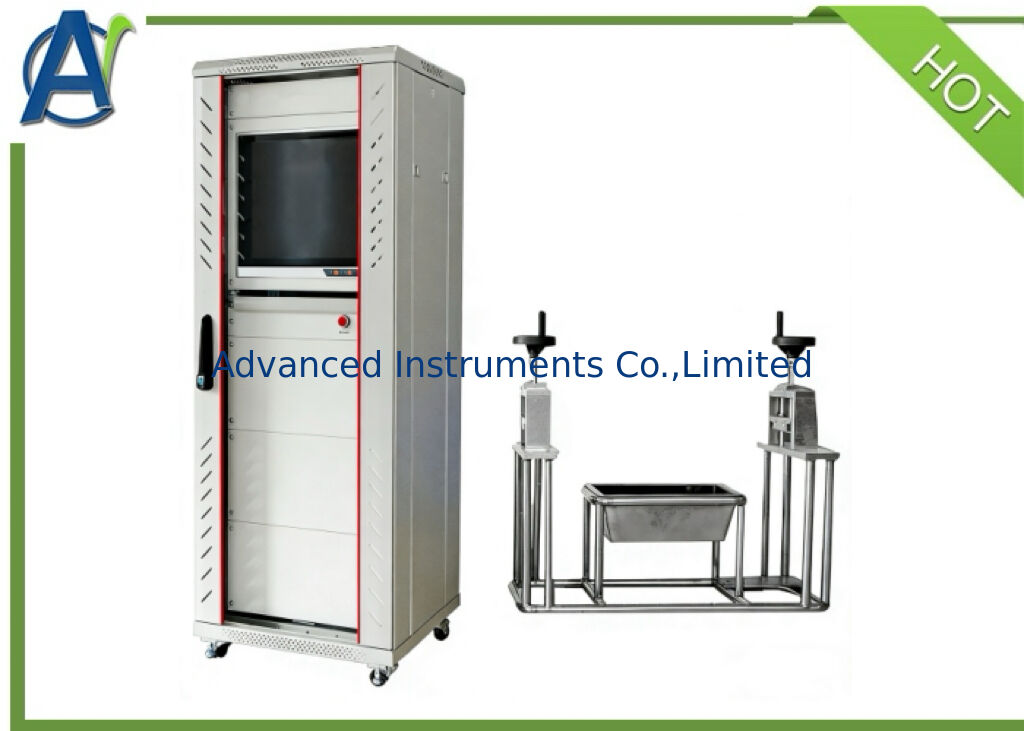

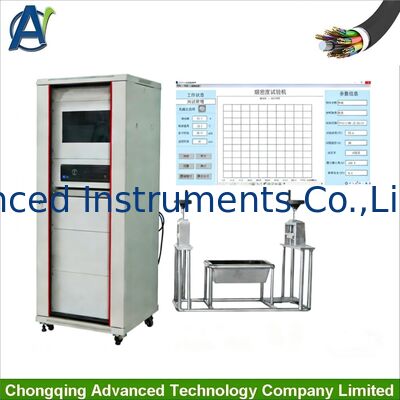

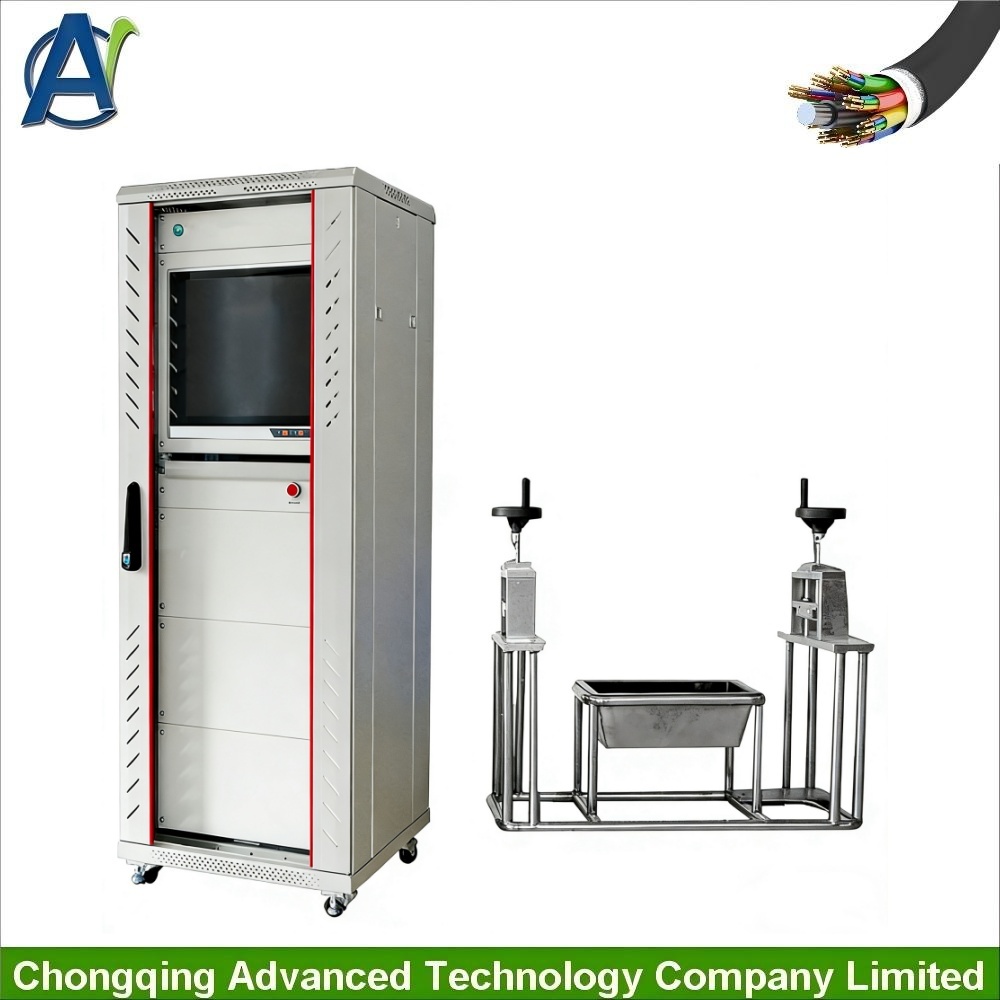

Burning device:
1.Use the long pole ignition devices to ensure the testing personnel's safety; stainless steel flame testing machine stand allocated with an automatic sample fixture.
2.Stainless Steel Alcohol Tray:
Internal Dimensions of the Bottom: 210mm*110mm
TopInternal Dimensions: 240mm*140mm
Height: 80mm
Optical System:
1.Use the restructured optical system light source which is imported by Germany
2.The light receiver is made of imported high-resolution batteries
3.Tungsten Quartz Halogen Lamp: Voltage: DC 12V; Power: 100W
4.Nominal Luminous Flux: 2000lm ~ 3000lm
5.Nominal Color Temperature: 2800K ~ 3200K
6.Lens Beam: 1.5m ± 0.1m (adjustable)
7.Optical receiver composed of imported high-resolution silicon photocells
8.Test Software: Smoke density DAQ test software, optical path calibration system, 0 and 100% point calibration, desktop computer operation
9.Standard Fan: Fan shaft height 200 ~ 300mm; Blade diameter 300 ± 60mm; Air volume 7 ~ 15m³/min)
