限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | IEC 60332-1~2; ISO 19642.2 |
| モデル番号: | AIC-21030 |
| 最小注文数量: | 1セット |
| 価格: | $3000~$5000 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30日間 |
| 支払条件: | L/C、T/T、D/P |
| 供給の能力: | 20セット/月 |
| アフターサービス: | 12 時間 12 か月以内に対応 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | 試験規格: | IEC 60332-1~2; ISO 19642.2 |
| ガス: | 空気とプロパン | 応用: | ケーブルとワイヤのテスト |
| 色: | グレー | 手術: | 自動 |
| 金属被覆サイズ: | 300mm×600mm×1175mm | 電源: | AC220V、50/60Hz、2A |
| ブラストバーナー: | 公称電力 1kw | 燃焼装置: | 自動高圧点火 |
| 空気源: | プロパンおよび圧縮空気 | 制御モード: | タッチスクリーンコントロール |
| 燃焼室容積: | ≧1m3 | ||
| ハイライト: | IEC 60332-1,ISO 19642.2,Vehicle Low-Voltage Cable Analyzer |
||

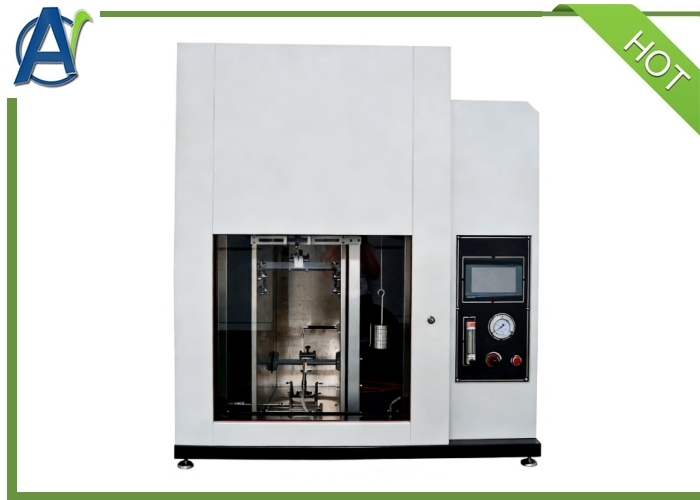

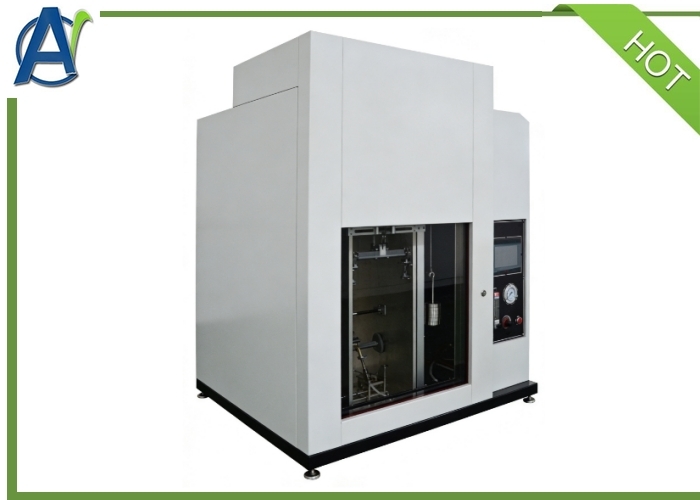

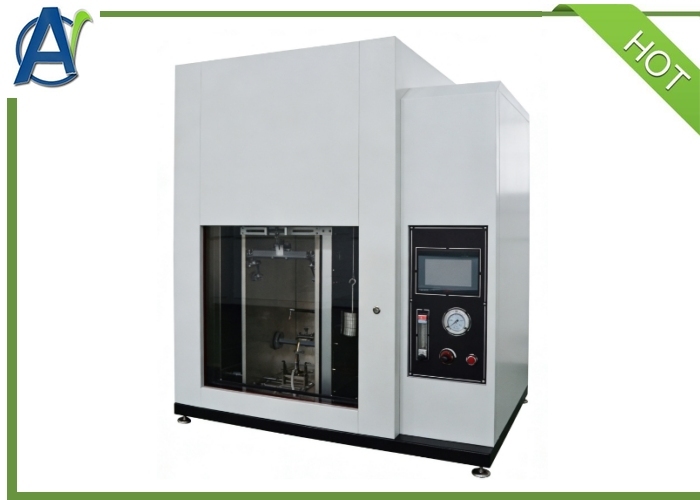

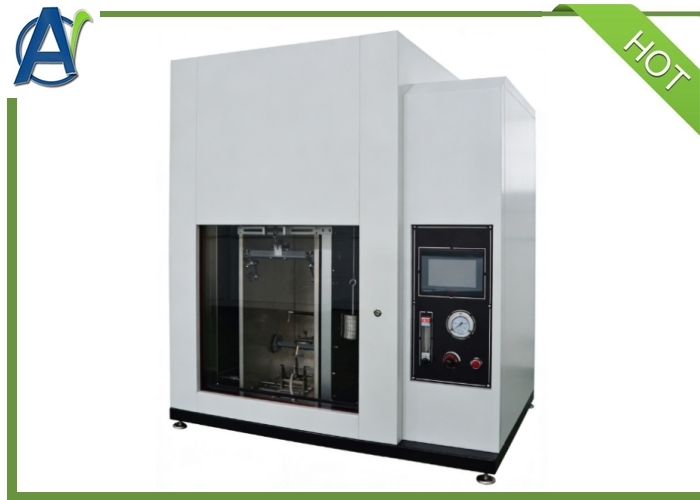

Single wire and cable tilting flame tester is generally applicable to road vehicles 60V and 600V single core wire tilt anti-retardant standard,horizontal flame-resistant time standard and international automotive cable standards of low-voltage cables for automobiles unshielded horizontal flame test methods. lt is used for performance assessment of cable under fire conditions.
Test method: Fix the two terminals of the sample, and put it into a metal over with three metal plate surfaces.Light on the blowtorch. Keep the blue inner cone point under sample 50mm away, and connect with the sample. The sample should be 45° tited to the horizontal plane.
1.Control mode: touch screen control, set the test combustion time in the screen. and control the burning time and display the temperature value when the flame temperature is calibrated.
2.Metal covering size:300mm(W)x600mm( D)x1175mm(H) open the front side.material is SUS304 stainless steel;
3.Combustion chamber volume: ≥1m³
4.Combustion torch: the United States imported torch, combustion port inner diameter of 9mm.
5.Flame size: outer flame height 100mm, inner flame height 50 mm.
6.Burner positioning: pneumatic.
7.Specimen load: 100N in total.
8.When the setting burning time reaches to preset time, the device will automatic stop.
9.lgnition: automatic high pressure ignition
10.Rotor flowmeter: 0.16L~1.6L/min
11.One individually controlled exhaust fan is mounted on the top
12.Flame detection device: One 0.5K-type imported thermocouple. One outer diameter 9mm electrolytic copper block and quality 10g+0.05g.One temperature and time display device.
