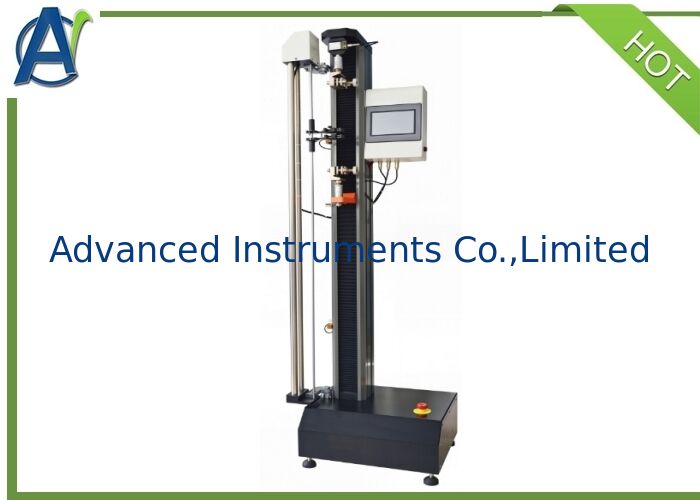

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke
ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke
基本情報
起源の場所: 中国
ブランド名: Advanced Instruments
証明: ISO6892-1:2009;ISO7500-1:2004
モデル番号: AIC-21006B
最小注文数量: 1セット
価格: $5000~$10000
パッケージの詳細: 合板ケース
受渡し時間: 60日間
支払条件: L/C、T/T、D/P
供給の能力: 20セット/月
ベストプライス 接触
アフターサービス: 12 時間 12 か月以内に対応 保証: 丸1年
輸送パッケージ: 合板ケース 試験規格: ISO6892-1:2009;ISO7500-1:2004
応用: 万能試験、塑性試験、引張試験 電源: AC220V、50/60Hz、2A
効果性脳卒中: 約800mm 変位分解能: 0.01mm
テスト材料: 金属、スチール、ワイヤーロープ、ゴム、プラスチック 最大試験力: 5N、100N、500N、1000N、2000N(ユーザーオプション)
試験力値相対誤差: ≤±1％ テスト速度範囲: 0~500mm/min
ハイライト:

ISO6892

,

ISO7500

,

LCD Tensile Test Machine

General Introduction
1.1 Equipment overview

LCD digital display tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. LCD digital display tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance.

1.2 Related standards
  • ISO6892-1:2009
  • ISO7500-1:2004

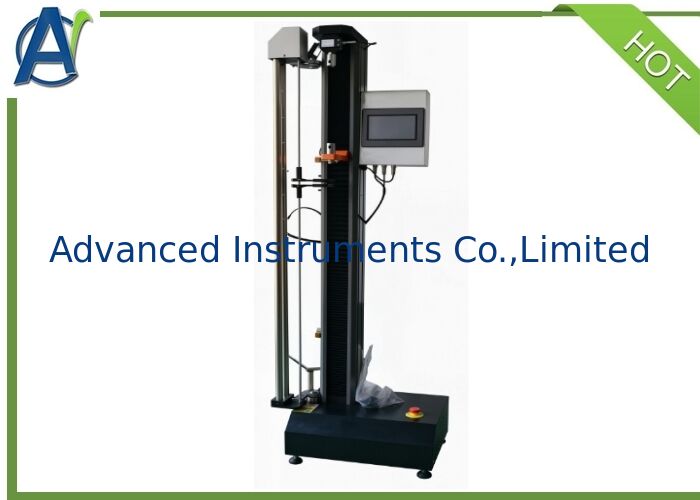

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke 0

Technical parameters
  • Max test force: 50N,100N,500N,1000N,2000N (optional for users)
  • Effective stroke: about 800mm
  • Test force value relative error: ≤±1%
  • Test speed range: 0~500mm/min
  • Displacement resolution: 0.01mm
  • Sensor: American Transcell S type sensor
  • Power system: XINJIE 400W servo motor
  • Clamps: Wave tooth type non-self-tightening clamps, 45 # steel processed, hard chrome plated surface
  • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
  • Large deformation resolution: 0.1%
  • Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
  • Guide rod bearing: NSK ball linear bearing imported from Japan
  • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15
  • Guide rod: made of two φ25 bearing steels with surface hardening, the surface hardness can reach above HRC58
  • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
  • Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
  • Display method: LCD
  • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
  • Safety device: overload stop function, up and down travel limiter, sample break stop function
Technical specifications
  • Overall Dimensions: 500mm*420mm*1650mm
  • Power supply: AC 220V, 50/60Hz, 2A

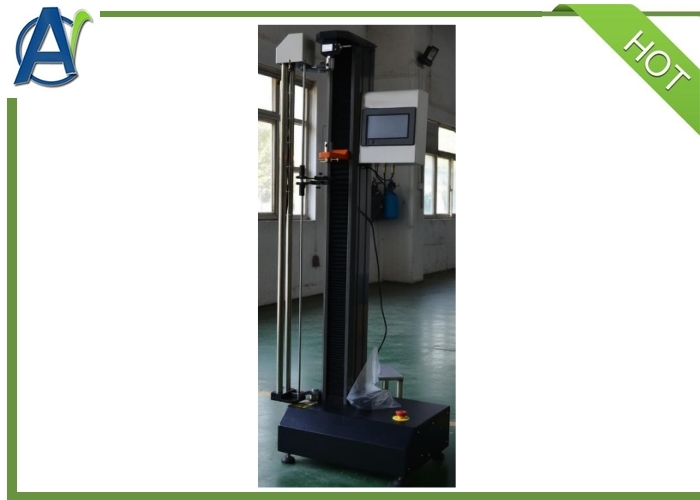

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
