ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method)

ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method)
ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method)
基本情報
起源の場所: 中国
ブランド名: Advanced Instruments
証明: ISO9001
モデル番号: ノアック-BA
最小注文数量: 1セット
価格: US$9000-10000/set
パッケージの詳細: 合板ケース
受渡し時間: 60日
支払条件: T/T、L/C、D/P
供給の能力: 月20セット
ベストプライス 接触
アプライアンス: 石油化学製品 テスト標準: ASTM D5800、DIN 51581
試験方法: ノアック・B・ノン・ウッドのメタル 温度精度: ± 0.1の° C
テスト時間: 約1時間 電源: AC 220V/50 HZ
アプリケーション: 潤滑油の蒸発損失を測定する 温度: 周囲温度 ~ 300°C
ソフトウェア言語: 英語 力: 2000w
ハイライト:

NOACK Volatility Test Machine

,

Evaporation Loss Analyzer for Lube Oil

,

Noack Volatility Tester


Product Description

The evaporation loss of lubricating oil is particularly important for internal combustion engine oils. At high temperatures, a portion of the oil will evaporate, leading to increased oil consumption and potential changes in oil performance.

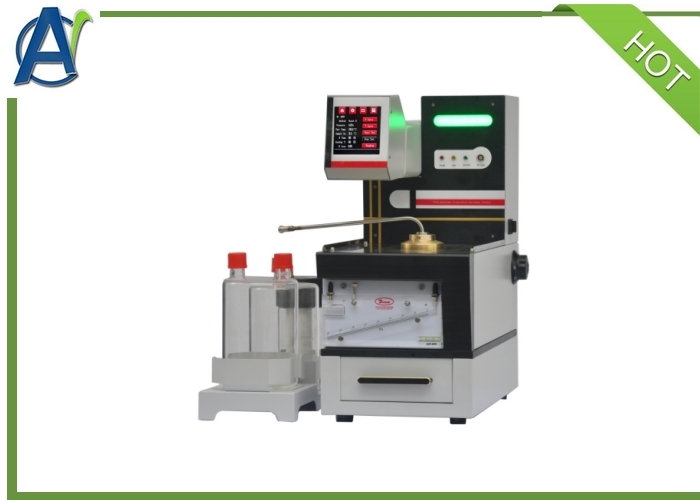

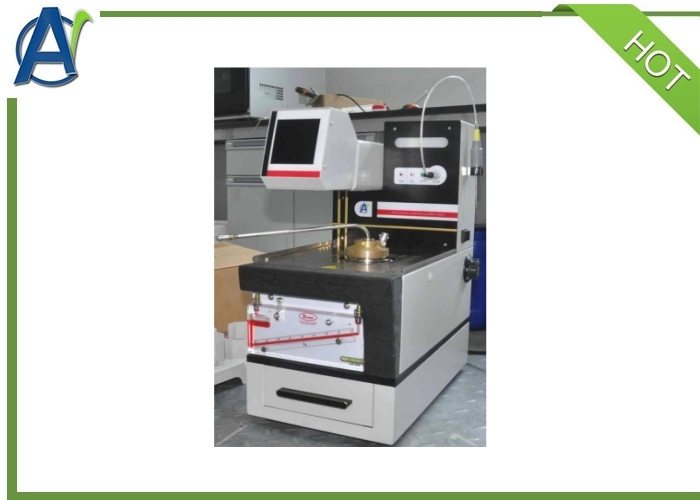

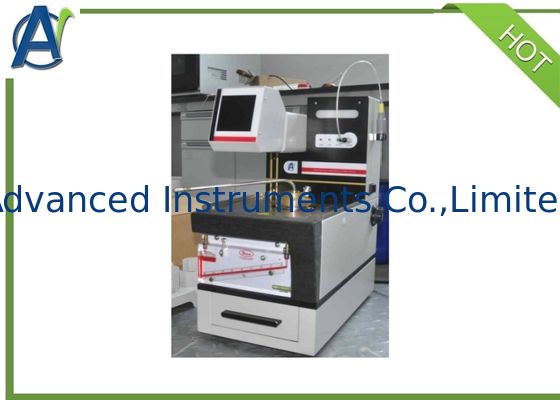

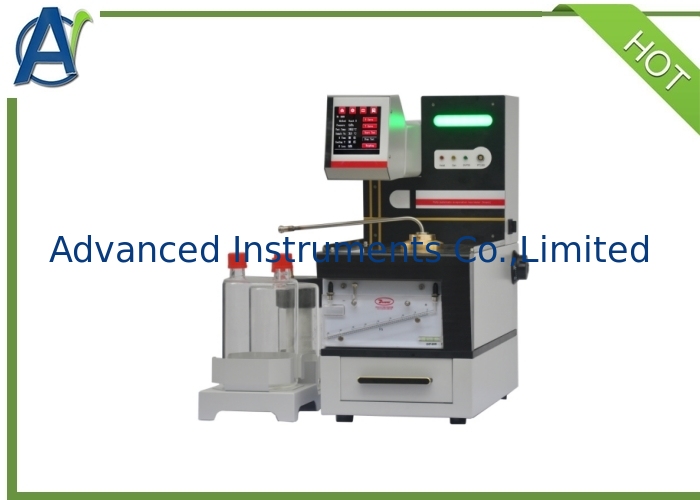

This Noack B method Evaporating Loss Tester is a specialized instrument designed to measure the evaporation loss of lubricating oils within a specified temperature range. It is manufactured in compliance with the standard NB/SH/T 0059 ("Determination of Evaporation Loss of Lubricating Oils – Noack Method") and is widely used in petroleum refining, petrochemical industries, and scientific research institutions. It plays a crucial role in controlling oil quality, ensuring lubricant performance, and prolonging service life. By accurately measuring evaporation loss, it helps evaluate oil performance and durability, providing a scientific basis for production, storage, and application.
It is mainly composed of heating system, temperature control system, constant air flow pressure control system, control system, vacuum system and timing alarm system. Its working principle is to make the bathtub reach the required constant temperature state for the test by means of a heater, and use an air pump to feed the sample into the evaporation test device in the constant temperature bath at constant pressure. After the specified time, the instrument will measure the amount of evaporation loss of the test.
It has the advantages of fast heating speed, high accuracy of thermostat, no noise, no pollution and uniform and stable airflow distribution. Using a touch color screen as a display, the intelligent PID control algorithm controls the temperature to ensure high temperature control accuracy and strong anti-interference capability.

Product Advantages

1.This Automatic Lubricating Oil Evaporation Loss Tester is fully intelligent, with touch screen operation, automatic temperature control, automatic testing, automatic constant pressure, automatic weighing of supporting electronic balance, automatic calculation of results, with printing function. The whole process of testing realizes unattended type.
2.Control mode: embedded operating system, high-speed microprocessor control, stable and reliable work.
3.Printing method: USB printer interface, RS232 interface.
4.Touch screen: LCD display, convenient touch screen operation.
5.Safety: Built-in diagnostics and multiple alarm functions.
6.Precision control: Built-in large-capacity EPROM, real-time recording of temperature and pressure values at each moment.
7.Efficient carbon fiber heating tube with rapid heating and low heat lag and uniform heating.
8.Optional touch screen operation, automatic temperature control, automatic testing, automatic constant pressure, automatic weighing of supporting electronic balance, automatic calculation of results. With printing function. It can be controlled by computer, and the data can be uploaded.

ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) 0

The Technical Specifications and Parameters



Environmental Requirements
5°C to 45°C Humidity < 80%
Power Supply
Rated Voltage: 220V
Frequency: 50Hz
Power: 600W
Fuse Rating: 10A
Time
Time Range: 30M~99M
Measurement Accuracy: ±0.01S
Sample Type
Lubricating Oil
Evaporation Loss
Measurement Range: 0.1~100%
Resolution: 0.1%



Functions of Instrument

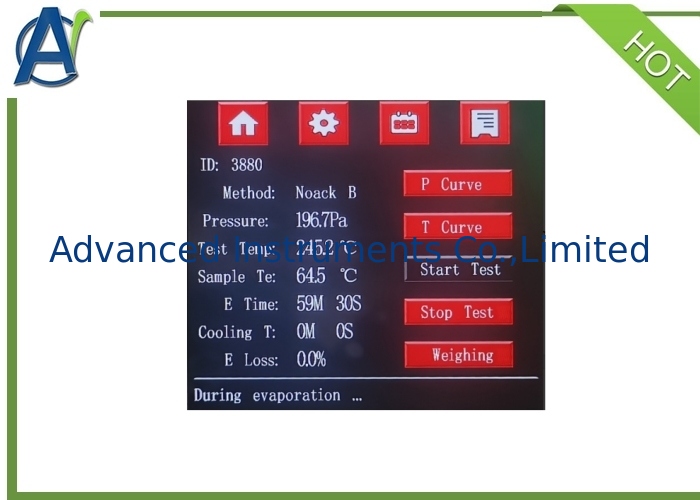

The touchscreen display on the tester controls the entire testing process, including heating, cooling, weighing, and calculation.

When testing, the host controls the evaporation time of the sample according to the set test temperature, vacuum pressure, cooling time and other parameters. After the evaporation is completed, it automatically enters the cooling process. The user is prompted to weigh the weight. After the evaporation loss result is calculated, the result is automatically stored in the host database for query.
The database stores all test-related data, including test time, sample coding, test temperature, test pressure, test method, evaporation loss, result determination, etc. When querying, any record data can be queried directly on the host display. The database stores up to 999 record data and automatically overwrites the first saved record data when it is full.

ASTM D5800 Automatic Lubricating Oil Evaporation Loss Tester (Noack B Method) 1



FAQ

1.What's the delivery time?
About 60days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
