限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ISO9001 |
| モデル番号: | AIC-7279 |
| 最小注文数量: | 1セット |
| 価格: | US$5000-10000/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 40日 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 月20セット |
| 試験規格: | ASTM D7279;ASTM D445 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | Trandmark: | 高度な機器 |
| 電源: | AC220V±10%、50Hz | OEMサービス: | 利用可能 |
| 温度範囲: | 周囲温度～150℃ | 応用: | エンジンオイル試験 |
| 関数: | 低温動粘度指数のテスト | ソフトウェア言語: | 英語 |
| 試験方法: | マルチセルキャピラリー粘度計 | 温度精度: | ≧±400°/秒 |
| 流量範囲: | 0~200ml/H | 表示内容: | 試験圧力、試験時間、一定時間 |
| コントロール: | タッチスクリーン | アプライアンス: | 石油化学製品 |
| 温度制御範囲: | 20～100℃ | 作業単位: | 2 |
| 加熱方法: | スパイラル式電気ヒーター | データストレージ: | 1000 グループのテスト結果 |
| 総動力: | 1500W | 温度制御精度: | ±0.02°C |
| 制御モード: | 自動測定・洗浄・乾燥 | ||
| ハイライト: | ASTM D7279,ASTM D445,Kinematic Viscometer |
||

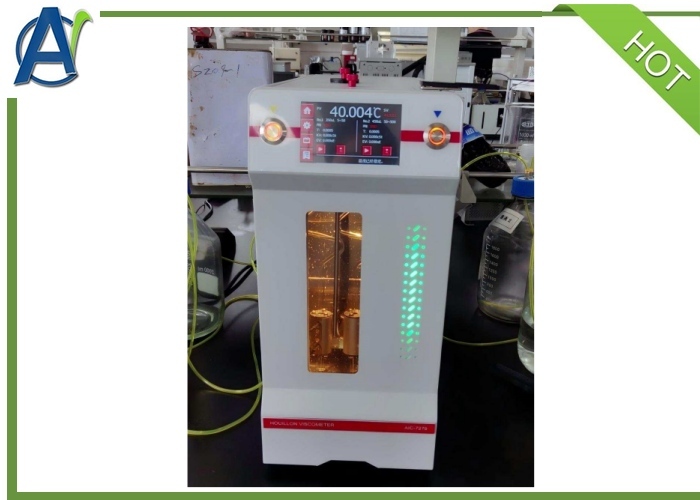

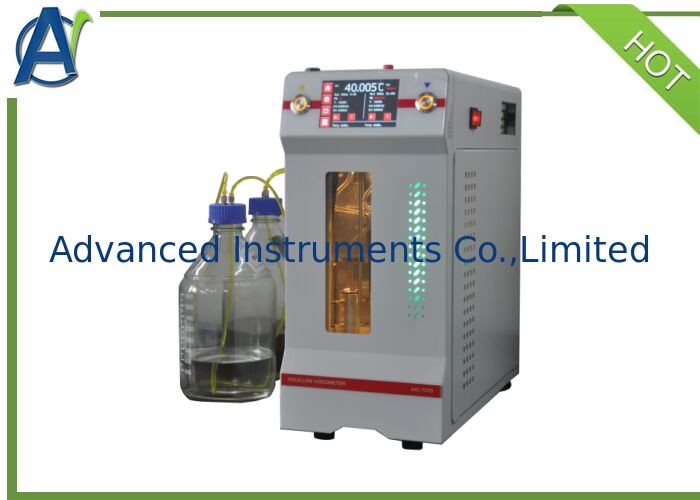

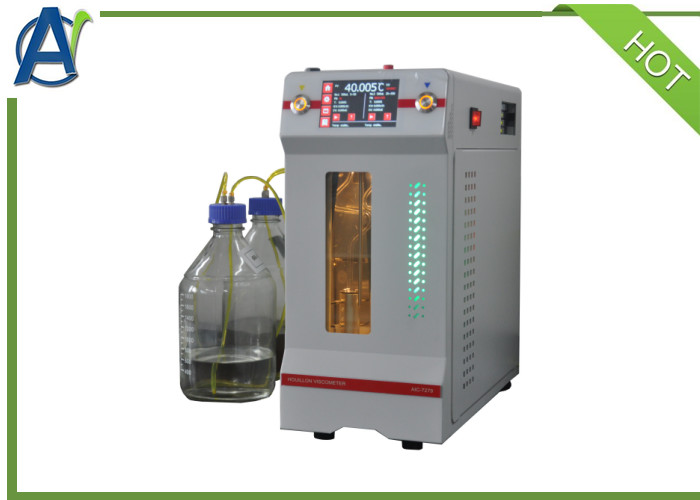

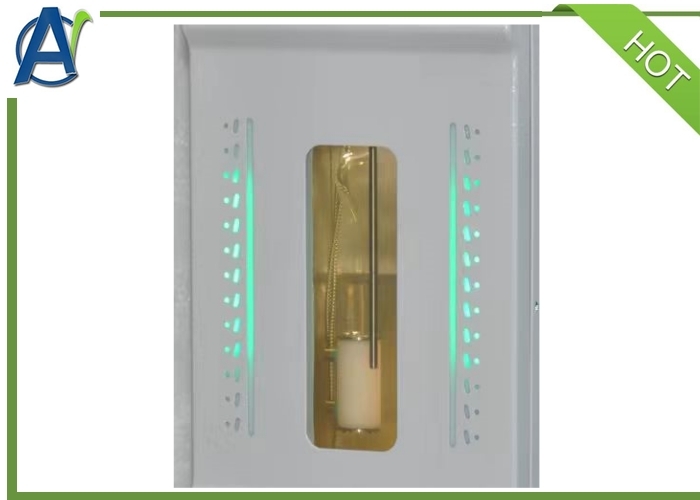

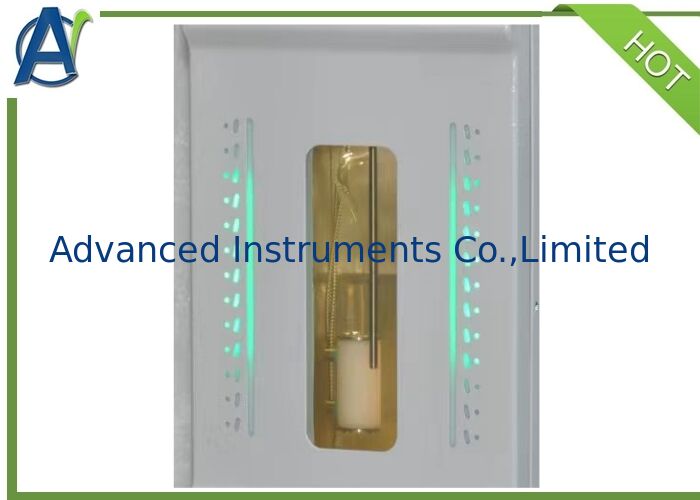

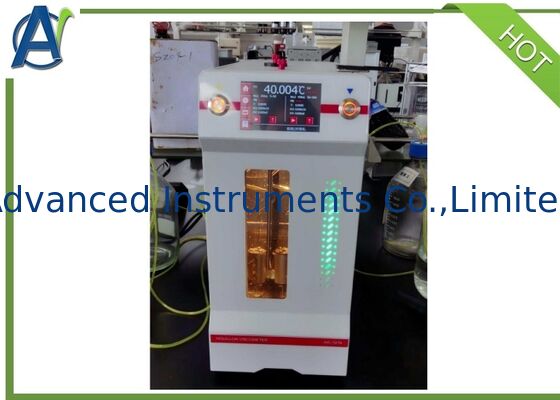

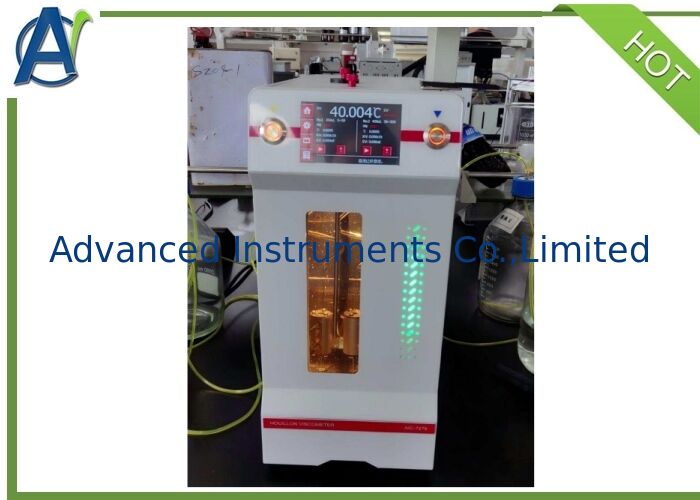

This Automatic Rapid Kinematic Viscometer is used to measure the kinematic viscosity of transparent and opaque liquids, including crude oil, light and heavy fuel oils, lubricating oils, additives, waste oils, residual oils, etc.
It quantitatively determines the kinematic viscosity of various Newtonian fluids at any temperature from 20°C to 100°C, and can calculate the viscosity index.
The instrument features automatic cleaning, automatic drying and automatic result calculation, with micro-volume detection, saving labor and consumables, and delivering fast testing speed.

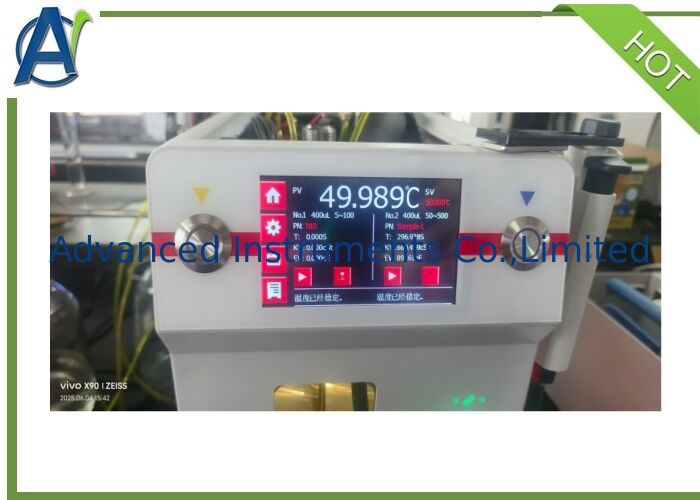

1.Controlled by a single-chip microcomputer with color touch screen display, stable and reliable.
2.Fast measurement: results available in 30 seconds, generally within 3–5 minutes.
3.User-friendly human-machine interface for easy operation.
4.High degree of automation: measurement, cleaning, drying and result calculation are fully automatic.
5.Efficient and low-cost cleaning: cleaning solution consumption is generally less than 10 mL per cycle.
6.Dual over-temperature protection (software & hardware), over-temperature alarm and dry-heating prevention function.
7.Low sample volume required: less than 1 mL.
8.Test results are highly consistent with standard methods GB/T 265 and GB/T 11137.
9.The test process fully meets national standard requirements with reliable data.
10.Capable of calculating viscosity index.
11.Tri-color indicator lights for working status prompt.
12.Multi-point temperature calibration function available.
| Model | AIC-7279 |
| Applicable Standards | ASTM D7279;ASTM D445 |
| Viscosity Measuring Range | 0.5 ~ 3000 mm²/s (selectable viscometer tube according to viscosity range) |
| Temperature Control Range | 20 ~ 100℃ (external cooling source required at 20℃) |
| Temperature control accuracy | ±0.02℃ |
| Measuring unit | 2 Units |
| Timing Accuracy | ±0.01 s |
| Test Accuracy | ≤0.68% |
| Heating Method | Spiral electric heater |
| Display | Color touch screen |
| Control Mode | Automatic measurement, cleaning and drying |
| Data Storage | 1000 groups of test results |
| Power Supply | AC220 V ±10%, 50Hz |
| Total Power | 1500W |
| Dimensions | 400mm×200mm×480 mm |
| Net Weight | 17KG |
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
