限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ASTM D1092 |
| モデル番号: | AIC-1092 |
| 最小注文数量: | 1セット |
| 価格: | US$20,000-40,000/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 40日 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 月20セット |
| 試験規格: | ASTM D1092 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | Trandmark: | 高度な機器 |
| 電源: | AC220V 50Hz | OEMサービス: | 利用可能 |
| 冷蔵方法: | 輸入エアコンプレッサー | 圧力表示: | 圧力計 |
| 温度制御精度: | ±0.1℃ | ソフトウェア言語: | 英語 |
| Functioin: | グリースシステム内の圧力損失を予測する | 一定温度法: | 外部温度調節器 |
| 温度制御: | デジタルPID | 圧力制御: | 圧力調整器 |
| 消費電力: | 600W | 応用: | 潤滑グリースの試験 |
| ハイライト: | ASTM D1092,Grease apparent viscosity tester,Grease viscometer |
||
This instrument meets the test method for the apparent viscosity of lubricating greases.
It is applicable for the determination of the apparent viscosity of lubricating greases within a temperature range of -54°C to 38°C, expressed in Poise (P).
Measuring Range:
At 0.1 s-1: 25 ~ 105P
At 15,000 s-1: 1 ~ 100 P
A floating piston driven by a hydraulic system forces the sample through a capillary tube.
The apparent viscosity is calculated from the predetermined flow rate and the applied force in the system according to the Poiseuille equation.
Apparent viscosity is measured at 16 shear rates using 8 capillary tubes of different diameters and 2 pump speeds.
The test results are presented as a log-log plot of apparent viscosity versus shear rate.
1.The Apparent Viscosity Test Instrument uses stainless steel sample tube, precision machined, matching precision piston;
2.Four separate pressure pipeline systems;
3.The Apparent Viscosity Test Instrument has 8 sets of special capillary tubes, which meet the standard requirements;
4.Microcomputer temperature controller, digital display, PT100 temperature sensor, high precision;

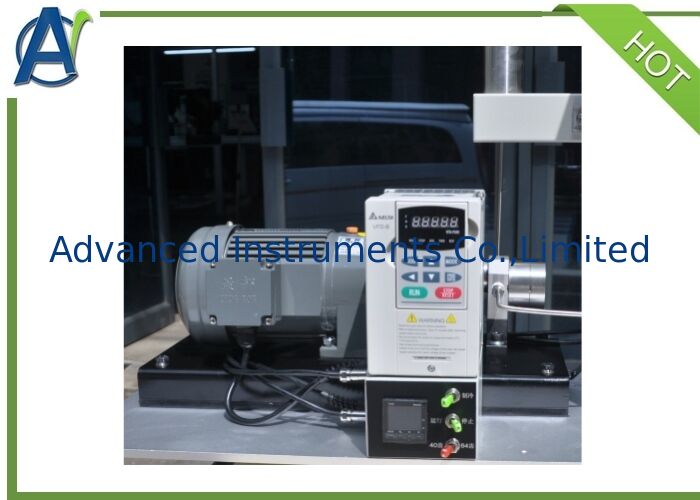

5.Integrated hydraulic pump, the flow is more stable;
6.The Apparent Viscosity Test Instrument adopts imported electric motor drive gearbox;
7.Electric switching speed, convenient operation;
8.A set of special tools is supplied with the apparent viscosity tester.
| Model | AIC-1092 |
| Applicable Standards | ASTM D1092 |
| Constant temperature method | External thermostat |
| Refrigeration method | Imported air compressor |
| Temperature control | Digital PID temperature controller |
| Pressure display | Pressure gauge |
| Pressure control | Pressure regulator |
| Temperature control accuracy | ±0.1ºC |
| Total power | 600W |
| Power Supply | AC220V, 50Hz |
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
