限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ISO3104 |
| モデル番号: | AIC-2983 |
| 最小注文数量: | 1セット |
| 価格: | US$3000-5000/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 40日 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 月50セット |
| 試験規格: | ASTM D445; ISO3104; DIN51366 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | Trandmark: | 高度な機器 |
| 電源: | AC220V 50Hz | OEMサービス: | 利用可能 |
| 温度範囲: | 周囲温度～-40℃ | ソフトウェア言語: | 英語 |
| テスト原則: | ブルックフィールド回転粘度計 | 冷蔵方法: | 半導体 |
| 温度精度: | ≧±400°/秒 | 画面: | 液晶画面 |
| 手術: | 自動 | 温度制御精度: | 周囲温度～-20℃±0.1℃ |
| 温度制御: | PIDデジタル表示温度コントローラー | 暖房システム: | 電気熱する管 |
| 機械の総電源: | 2.5KW | 冷蔵システム: | 圧縮機の冷凍 |
| 作業ユニット: | 2つの管 | コアコンポーネント: | ステンレス鋼のヒーター |
| ハイライト: | ASTM D445,ISO 3104,Low-Temp Kinematic Viscosity Tester |
||

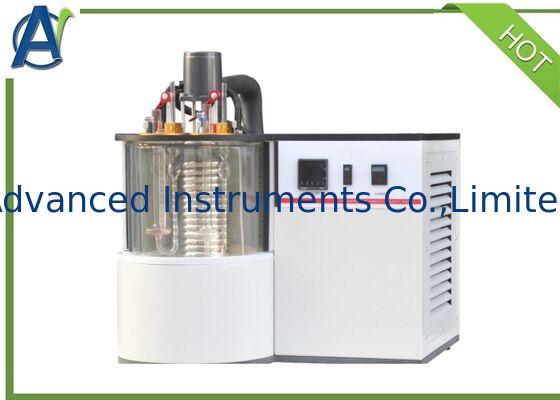

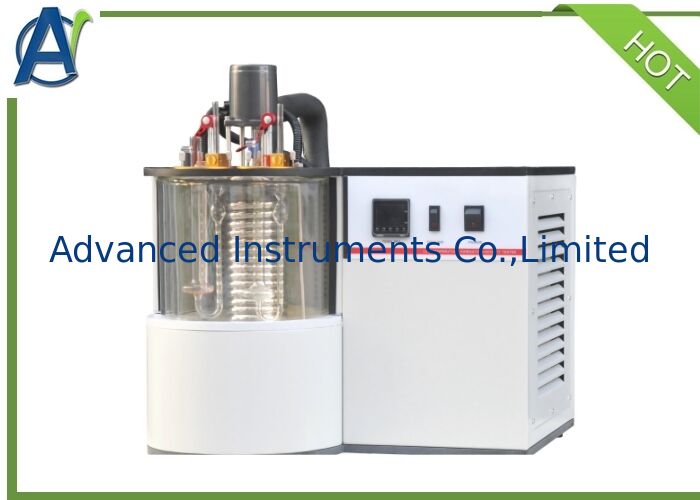

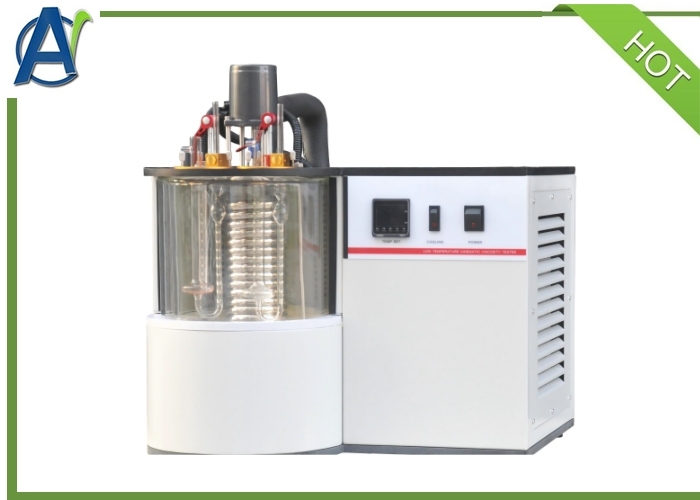

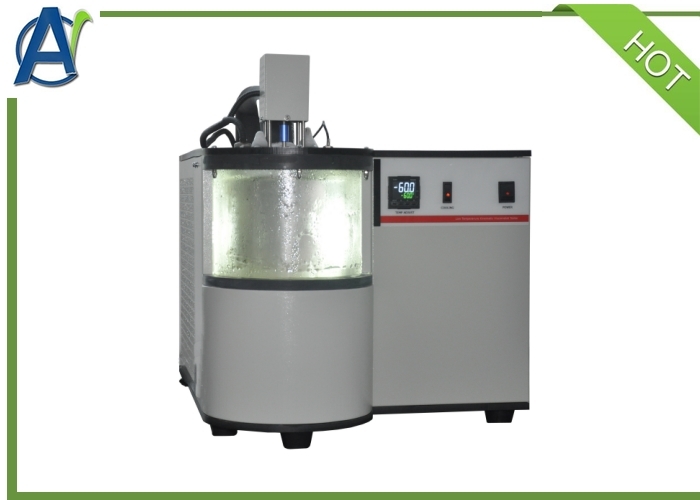

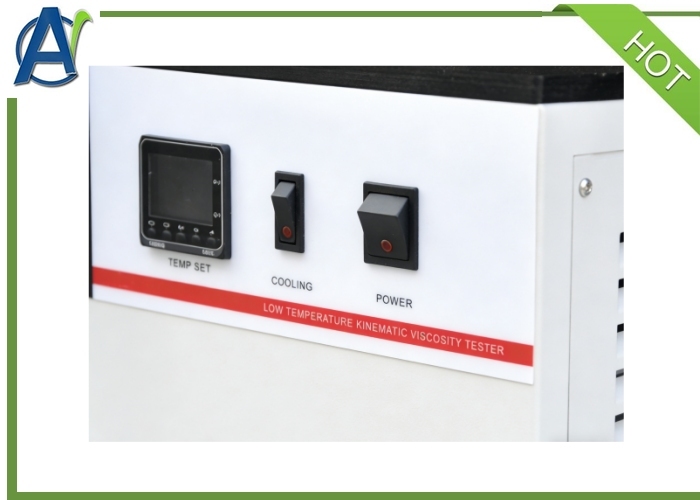

This Low-Temperature Kinematic Viscosity Tester is suitable for determining the low-temperature viscosity of petroleum products. Its mechanism is as follows: At a constant temperature, measure the time required for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the measured liquid at that temperature.
1.Dewar flask as the bath body for transparent observation;
2.Integrated structure for easy operation;
3.Vacuum Dewar flask insulation, inner cylinder Φ150×300mm;
4.Two samples can be tested simultaneously, convenient for parallel samples;
5. High-power solid-state relay control output, no voltage leakage;
6. A stirrer is installed on the electronic heating bath;
7. Stainless steel heater;
8. Temperature controller displays heating status;
9. The shell is made of high-quality cold-rolled steel plate, with electrostatic spraying treatment on the surface, good rust resistance and easy cleaning;
10. Safety facilities to prevent overheating and low water level;
11. Contact control box is very convenient;
12. Imported Omron PID temperature controller with digital continuous temperature display, accuracy 0.1℃;
13. Vibration-damping compressor refrigeration technology, fluorine-free refrigeration.
| Model | AIC-445 |
| Applicable Standards | ASTM D445;ISO3104;DIN51366 |
|
Temperature Control Method
|
Imported PID Digital Display Temperature Controller
|
|
Temperature Control Accuracy
|
Ambient temperature ~ -20℃±0.1℃
|
|
Heating Method
|
Electric Heating Tube Heating
|
|
Total Machine Power
|
2.5KW
|
|
Working Unit
|
2 Tubes
|
|
Power Supply
|
AC220V, 50Hz
|
|
Refrigeration Method
|
Compressor Refrigeration
|
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
