| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ISO3104 |
| モデル番号: | AIC-2983 |
| 最小注文数量: | 1セット |
| 価格: | US$1000-2000/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 40日 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 月50セット |
| 試験規格: | ASTM D445; ISO3104; DIN51366 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | Trandmark: | 高度な機器 |
| 電源: | AC220V 50Hz | OEMサービス: | 利用可能 |
| 温度範囲: | 周囲温度～-40℃ | ソフトウェア言語: | 英語 |
| テスト原則: | ブルックフィールド回転粘度計 | 冷蔵方法: | 半導体 |
| 温度精度: | ≧±400°/秒 | 画面: | 液晶画面 |
| 手術: | マニュアル | 温度制御精度: | ±0.1℃ |
| 温度制御: | PID LCD温度コントローラー | 暖房システム: | 電気熱する管 |
| 機械の総電源: | 2.5KW | 冷蔵システム: | 圧縮機の冷凍 |
| 作業ユニット: | 4つの管 | コアコンポーネント: | ステンレス鋼のヒーター |
| 温度管理方法: | 輸入PID LCD温度コントローラー | 温度制御範囲: | 室温| 100℃ |
| ヒータ: | ステンレス鋼 | ||
| ハイライト: | ASTM D445,ISO 3104 DIN 51366,Kinematic Viscosity Testing Instrument |
||

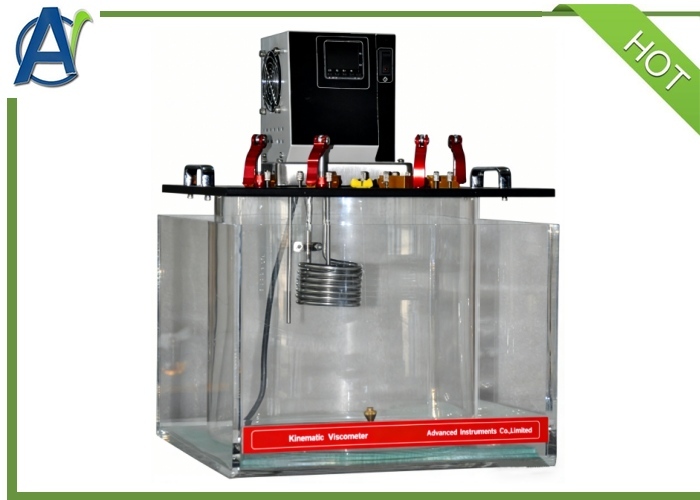

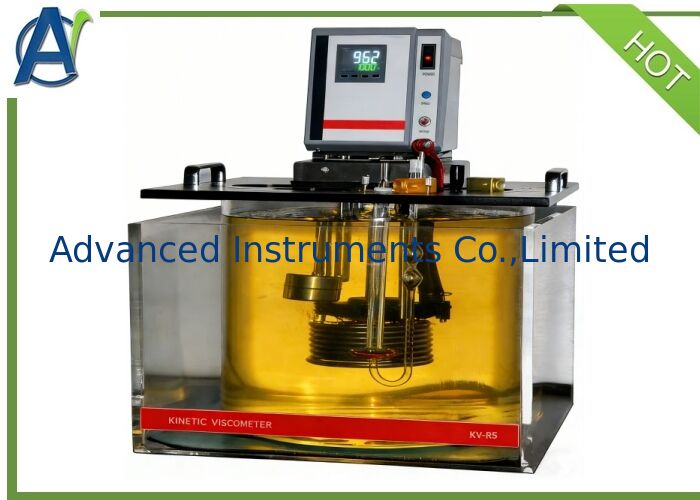

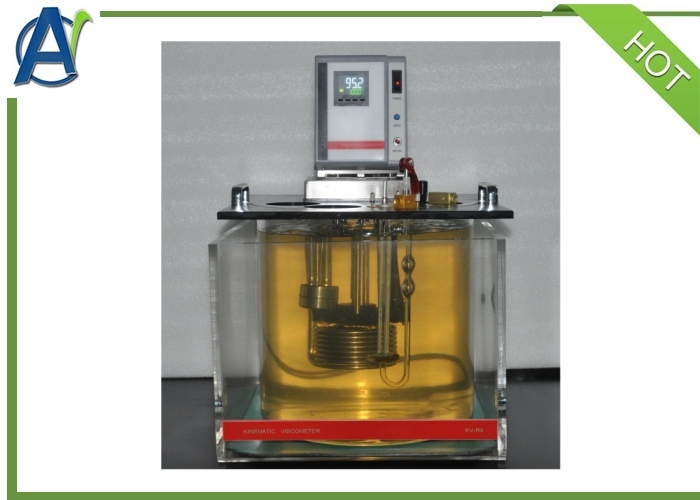

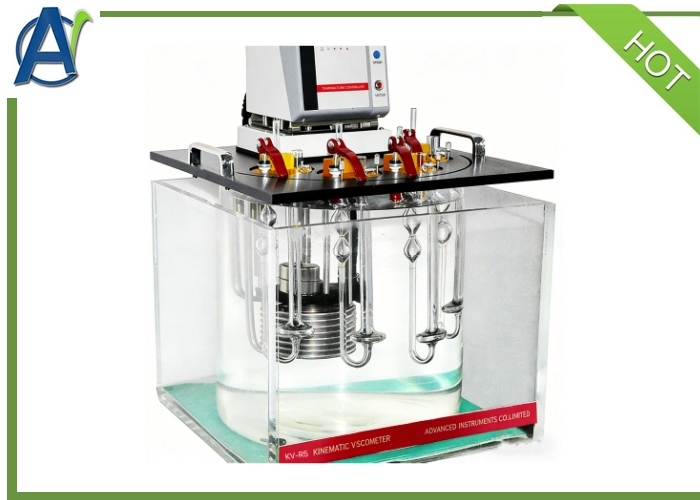

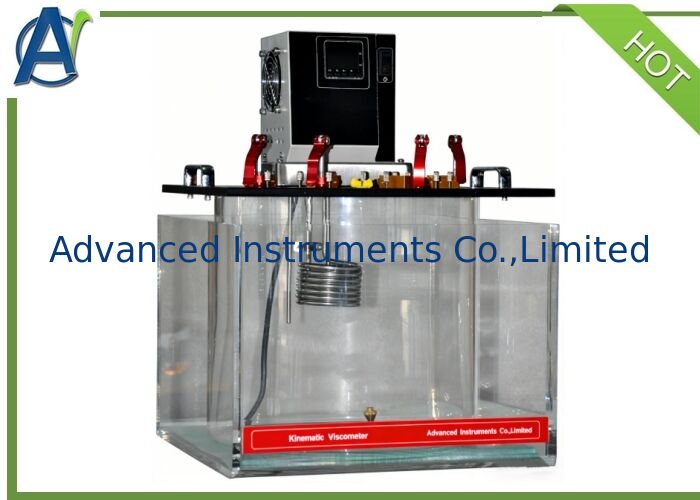

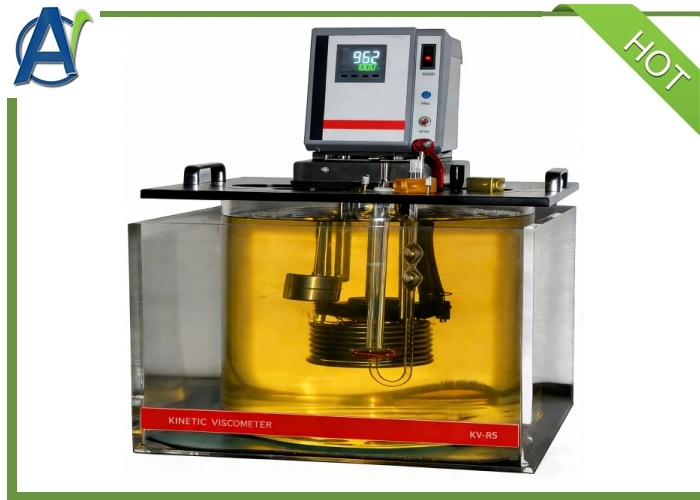

This Kinematic Viscosity Tester is suitable for determining the viscosity of petroleum products. The mechanism of the instrument is as follows: at a constant temperature, measure the time required for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity; the product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the measured liquid at that temperature.
1.360° fully transparent structure for easy observation;
2.Full aluminum operation table with anodized wire drawing treatment on the surface;
3.Sputtered turbo liquid circulator to improve the temperature uniformity of the upper, middle and lower parts of the bath;
4.Four samples can be tested simultaneously, facilitating the preparation of parallel samples;
5.High-power solid-state relay control output, no voltage leakage;
6.Stainless steel heater;
7.The temperature controller displays the heating status;
8.Safety protection device to prevent overheating and low water level;
9.Imported PID temperature controller with digital temperature display and an accuracy of 0.1℃.
| Model | KV-R5 |
| Applicable Standards | ASTM D445;ISO3104;DIN51366 |
|
Temperature Control Method
|
Imported PID LCD Temperature Controller
|
|
Temperature Control Accuracy
|
±0.1℃
|
|
Temperature Control Range
|
Room Temperature~100℃
|
|
Heating Method
|
Electric Heating Tube Heating
|
|
Total Machine Power
|
2.5KW
|
|
Working Unit
|
4 Tubes
|
|
Power Supply
|
AC220V, 50Hz
|
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
