限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ASTM D4007 |
| モデル番号: | AIC-5Y |
| 最小注文数量: | 1セット |
| 価格: | US$3500-4500/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 20日間 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 1か月あたり200セット |
| 試験規格: | ASTM D4007 | 保証: | 丸1年 |
|---|---|---|---|
| 輸送パッケージ: | 合板ケース | Trandmark: | 高度な機器 |
| 電源: | AC220 V 50Hz | OEMサービス: | 利用可能 |
| ソフトウェア言語: | 英語 | 最高回転速度: | 4000R/min |
| 最大相対遠心力: | 3756*G | 最大容量: | 4*100ml |
| タイミング範囲: | 0~99分 | 回転速度の精度: | ±10r/min |
| 重さ: | 63kg | 寸法: | 592mm×440mm×370mm |
| ハイライト: | ASTM D4007,Total Centrifuge Test Equipment,Crude Oil Centrifuge Machine |
||

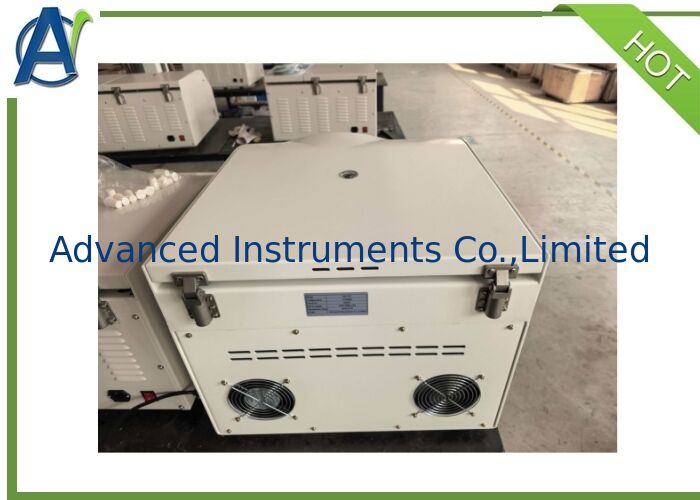

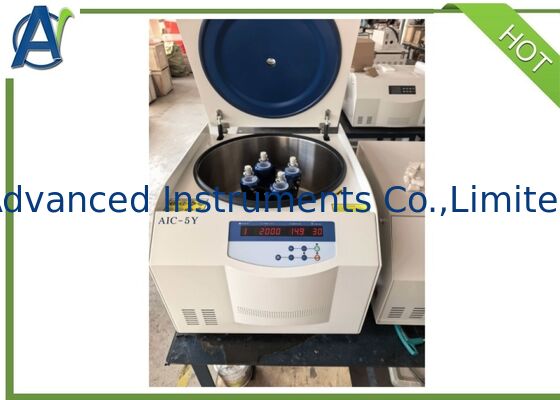

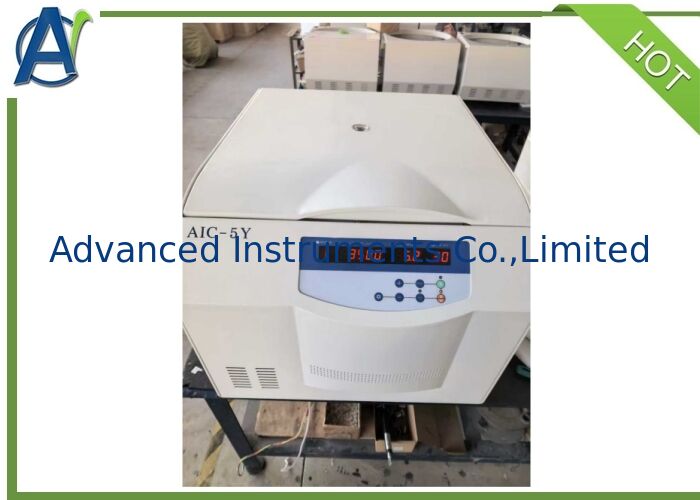

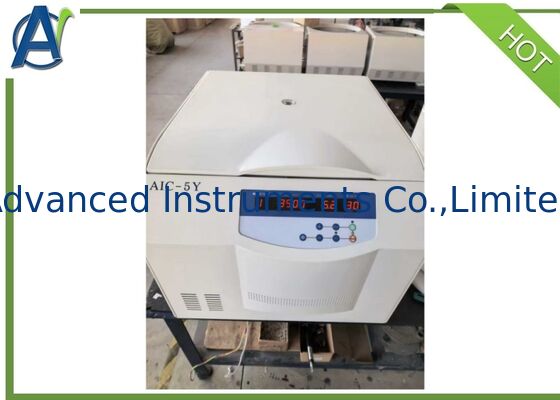

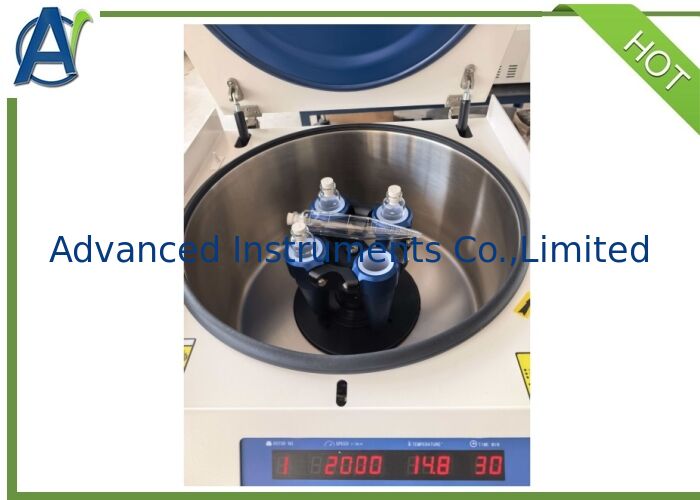

AIC-5Y benchtop low speed centrifuge can separate,concentrate and purify specimen such as emulsion and suspension.It is designed according to GB/T6533-86,especially used to determine water and sediment in crude oil (Centrifuge method). This instrument is driven by ac variable frequency motor,rotating speed and time are displayed digitally.Electrical controlling system is controlled by mic-processor, key-press programmable method,easy operation,humanization design and beautiful appearance.
This centrifuge machine uses electronic door lock,if the door is not covered well(unlocked),the centrifuge can not be started.When it is running,press key of Lock,the door cover can not be opened.Please wait till the rotating speed is zero,press key Lock,the cover can be opened.. It adopts optimal design for damping system,the running is stable with slight shaking,low noisy and good separation performance.
This centrifuge equipment complies to GB/T6533-86 and IEC61010-2-020:1992.
|
Max.rotating speed
|
4000r/min
|
Total power
|
1.5kw
|
|
Max.relative centrifugal force
|
3756xg
|
Power supply
|
Ac220V 50Hz 10A
|
|
Max.capacity
|
4×100ml
|
Noise
|
≤60dB(A)
|
|
Accuracy of rotating speed
|
±10r/min
|
Net weight
|
63kg
|
|
Temperature setting range
|
Room temperature/heating to 80ºC
|
Temperature controlling range
|
±1ºC if 40~60ºC
|
|
Shortest time of speed-up and speed-down |
Can be set at random |
Door lock type |
Electronic door lock |
|
Timing range |
0~99min |
Diameter of centrifugal chamber |
500mm |
|
Motor |
AC varied frequency |
Display screen |
Digital |
|
Overall dimension |
592×440×370mm(L×W×H) |
Driving mode |
Direct driving |
