| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Advanced Instruments |
| 証明: | ASTM D2440 |
| モデル番号: | AIC-0811E |
| 最小注文数量: | 1セット |
| 価格: | US$15,000-20,000/set |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30日 |
| 支払条件: | T/T、L/C、D/P |
| 供給の能力: | 月50セット |
| 試験規格: | ASTM D2440;IEC61125 | 保証: | 丸1年 |
|---|---|---|---|
| Trandmark: | 高度な機器 | 電源: | AC220V 50Hz |
| OEMサービス: | 利用可能 | 加熱方法: | メタルバス |
| 温度制御モード: | 輸入されたPIDの温度調節器 | 温度制御精度: | 周囲温度～200±0.1℃ |
| 作業単位: | 8個 | 流量制御: | 精密流量計 |
| 総電力: | 約3KW(推定) | ||
| ハイライト: | ASTM D2440 mineral oil tester,IEC 61125 oxidation stability tester,mineral insulating oil test equipment |
||

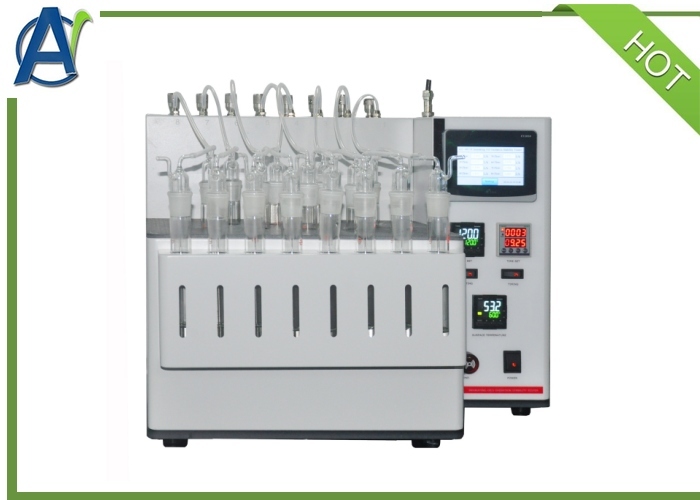

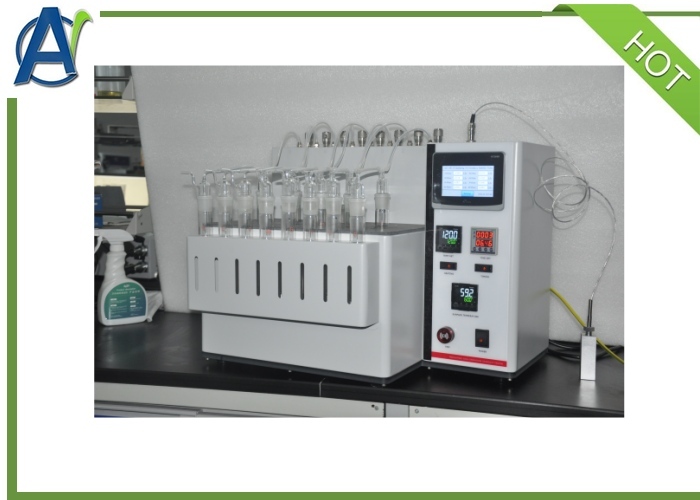

This instrument is suitable to determine oxidation stability of unused hydrocarbon based insulating liquids under
accelerated conditions.
The insulating liquid sample is maintained at 120℃ in the presence of a solid copper catalyst whilst bubbling a constant flow of air.The degree of oxidation stability is estimated by measurement of volatile acidity,soluble acidity and sludge.

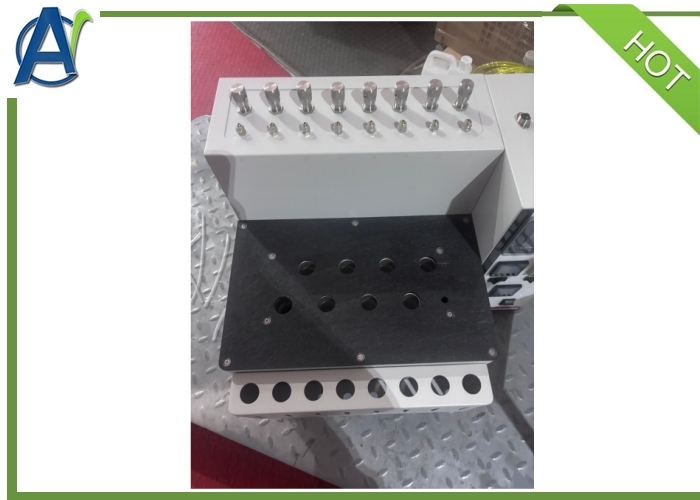

It is desktop type,equipped with heating bath and precise flow meter.Sample bottle can in holes on stainless steel cover.
|
Applicable standards
|
SH/T0811,IEC61125
|
|
Heating mode
|
Metal bath
|
|
Temperature controlling mode
|

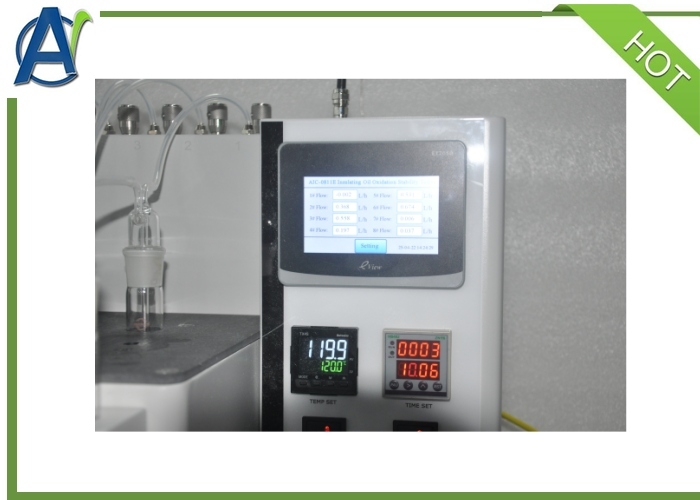

Imported PID temperature controller
|
|
Temperature controlling accuracy
|
Ambient~200±0.1℃
|
|
Working units
|
8pcs
|
|
Flow controlling
|
Precise flow meter
|
|
Total Power
|
About 3KW(estimated)
|
|
Dimension
|
730mm*740mm*630mm (estimated)
|
|
Power supply
|
AC 220V ,50Hz
|
