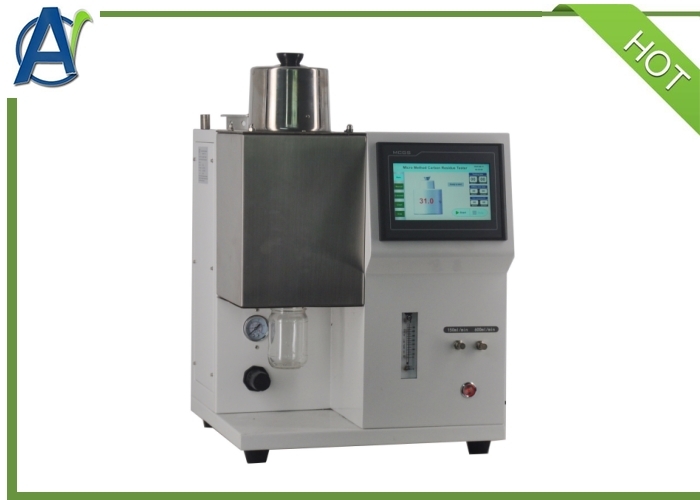

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
基本情報
起源の場所: 中国
ブランド名: Advanced Instruments
証明: ISO9001
モデル番号: AIC-4530
最小注文数量: 1セット
価格: US$5,000-10,000/set
パッケージの詳細: 合板ケース
受渡し時間: 30日
支払条件: T/T、L/C、D/P
供給の能力: 月50セット
ベストプライス 接触
試験規格: ASTM D4530; ISO10370 保証: 丸1年
Trandmark: 高度な機器 OEMサービス: 利用可能
言語: 英語 試験方法: マイクロメソッド
温度制御精度: 520±2℃ 作業ポジション: 12つのサンプル
暖房モード: 加熱ロッド加熱 接続モード: 輸入ステンレス製クイックコネクター
圧力範囲: 0 kPa (0 kg/cm2) ～392 kPa (4 kg/cm2) 流量範囲: 100ml～1000ml/分
廃液回収ボトル: ネジ付きインターフェースを備えた 200ml ガラスボトル 電源: AC 220 V、50 Hz
総電力: 2000W 機器の寸法: 550mm×500mm×590mm
正味重量: 35kg
ハイライト:

ASTM D4530 micro carbon residue tester

,

ISO 10370 carbon residue test apparatus

,

automatic micro method oil test equipment

General Introduction

This Micro Carbon Residue Detection Equipment is designed and made as per GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the amount of carbon residue of petroleum products.

Features
  1. 1. 5-inch TFT color LCD display with screen resolution of 800×480;
  2. 2. Chinese-language operating interface with touchscreen control for easy and efficient operation;
  3. 3. Automatic control of temperature rise and gas flow, with real-time display of test progress;
  4. 4. Adopts an embedded operating system for stable and reliable performance;
  5. 5. High-temperature safety protection;
  6. 6. Editable input of sample tube and sample mass;
  7. 7. Automatic calculation of carbon residue value;
  8. 8. Stores up to 100 sets of historical data for easy query;
  9. 9. Historical data can be queried by date;
  10. 10. Coking chamber inlet orifice diameter: 1mm (12 in total).

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 0

Technical Specifications and Parameters
  1.  Applicable Standards: GB/T 17144, ASTM D4530, ISO 10370, DIN 51551
  2.  Temperature Control Accuracy: 520±2℃
  3. Working Positions: 12 samples
  4. Heating Mode: Heating rod heating, easy for maintenance
  5. Connection Mode: Imported stainless steel quick connector, leak-proof
  6.  Pressure Range: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²)
  7.  Flow Range: 100 ml ~1000 ml/min
  8. Waste Liquid Collection Bottle: 200 ml glass bottle with threaded interface
  9. Power Supply: AC 220 V, 50 Hz
  10. Total Power: 2000 W
  11. Instrument Dimensions: 550×500×590 mm
  12. Net Weight: 35 KG
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 1
FAQ
1.What's the delivery time?
About 30days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
