| 起源の場所: | 中国 |
|---|---|
| ブランド名: | AI |
| 証明: | ISO9001 |
| モデル番号: | AIC-5133 |
| 最小注文数量: | 1セット |
| 価格: | USD$40,000~45,000 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30日間 |
| 支払条件: | T/T、ウェスタンユニオン、L/C |
| 供給の能力: | 月20セット |
| 試験規格: | ASTM D5133、ASTM D7110、Sh/T0732、GB/T 11121 | 保証: | 丸1年 |
|---|---|---|---|
| Trandmark: | 高度な機器 | OEMサービス: | 利用可能 |
| 言語: | 英語 | 暖房モード: | オイルの浴室 |
| 電源: | AC（220±10％）V、50Hz | 温度制御精度: | ±0.1℃ |
| 応用: | エンジンオイル試験 | 画面: | 導かれた |
| ポータブル: | 非ポータブル | 温度範囲: | 室温～150℃ |
| 作業ユニット: | 6 | 温度管理方法: | インポートされたデジタル PID |
| 総電力: | 2kw | 試験方法: | スキャニングブルックフィールド法 |
| 温度制御: | 室温～-40℃ | 測定範囲: | 0～40000MPa.S |
| 冷凍: | 半導体 | 加熱方法: | 電熱棒 |
| 手術: | 自動 | 関数: | ポンパビリティとゲル化指数の測定 |
| ソフトウェア言語: | 英語 | ||
| ハイライト: | lubricating oil gel index tester,ASTM D5133 lubricant test equipment,lubricant gelation tendency tester |
||

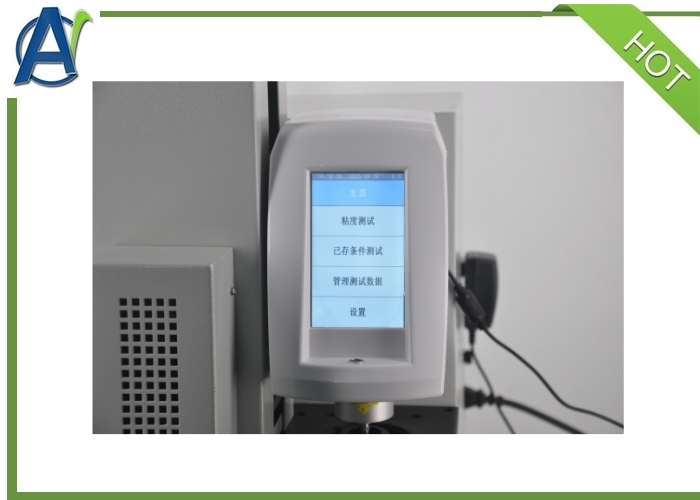

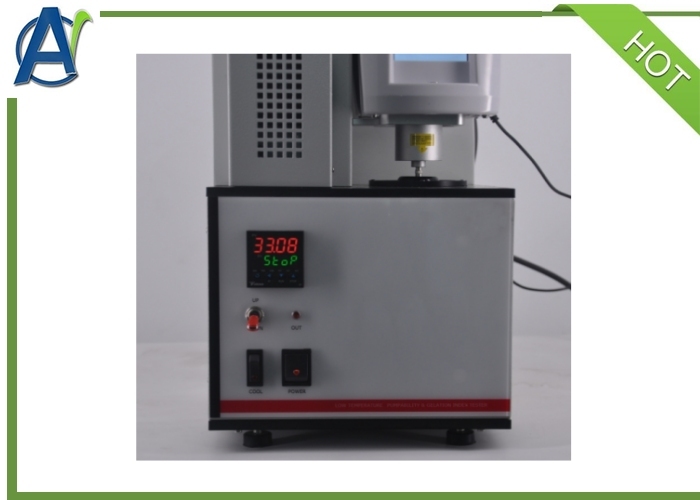

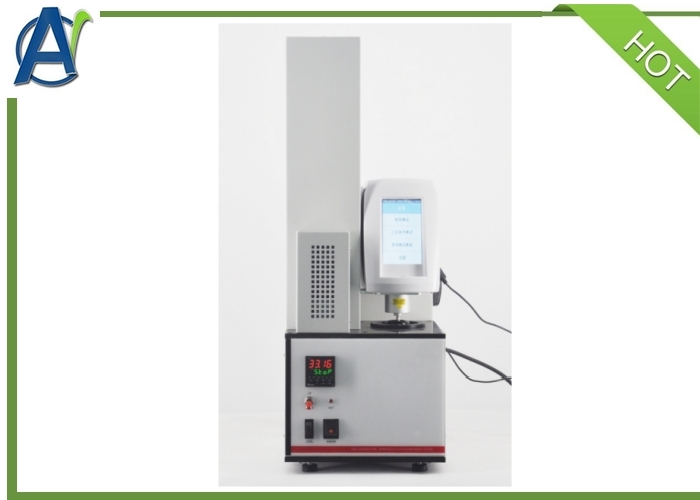

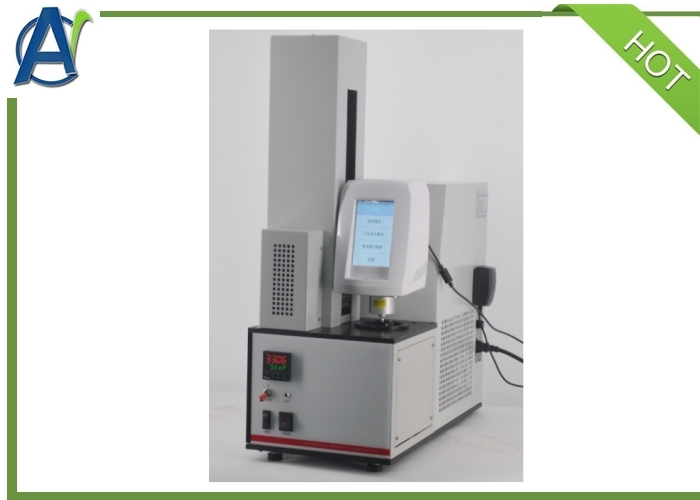

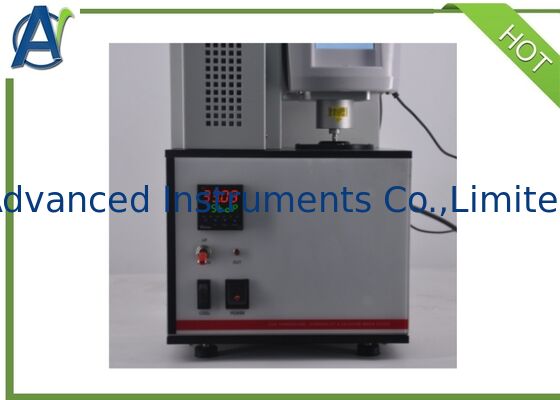

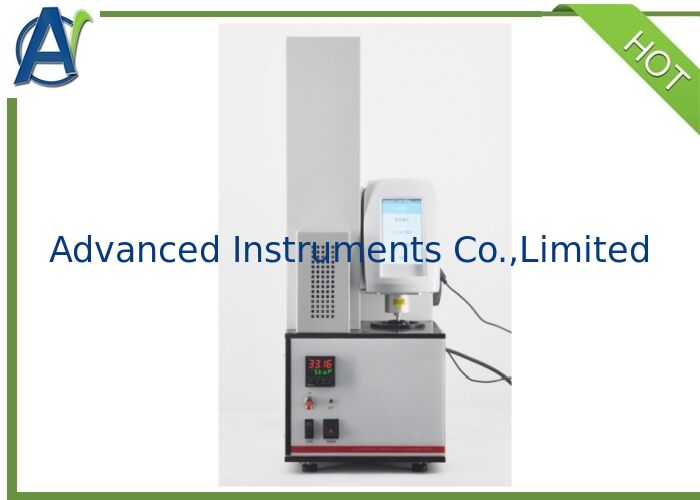

Lubricating Oil Gel Index Tester
I. Introduction:
Adopting Brookfield Scanning Technology, this Gelation Index Tester continuously records viscosity values across a wide temperature range from +20°C to -70°C to test the low-temperature pumpability and gel index of fresh engine oils, sooted oils and highly oxidized engine oils. It complies with standard test methods including ASTM D5133, ASTM D7110, SH/T0732 and GB/T 11121, and is designated apparatus for ASTM D5133.
Working principle: measure the low temperature pumpability and gelation index of unused and highly oxidized engine oil by slowly and continuously reducing the measuring temperature, and record the two values at the same time. If the gelation index is higher than 12, the engine will fail under some cooling conditions. This Low-Temperature Gelation Index Tester is the only one that can measure lubricant gelation index.
II. Main Features
III. Specifications:
| 1 | Applicable standards | ASTM D5133, ASTM D7110, SH/T0732, GB/T 11121 |
| 2 | Cooling Method | Semiconductor refrigeration |
| 3 | Temperature Control Mode | Digital display PID temperature controller |
| 4 | Temperature Control Range | Ambient temperature ~ -40±0.1℃ |
| 5 | Measuring Range | 0 ~ 40000 mPa·s |
| 6 | Operation Mode | Touch screen operation |
| 7 | Lifting Mode | Automatic lifting |
| 8 | Power supply | AC220V/50Hz |
| 9 | Total Power | Main unit: 800W; Cold bath: 1200W |
| 10 | Overall Dimensions | Main unit: 400mm*250mm*700mm; Cold bath: 435mm*540mm*730mm |
| 11 | Net Weight | Main unit: 32KG; Cold bath: 45KG |
