限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | AI |
| 証明: | ISO9001 |
| モデル番号: | MHT-8 |
| 最小注文数量: | 1セット |
| 価格: | USD$70,000~80,000 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30日間 |
| 支払条件: | T/T、ウェスタンユニオン、L/C |
| 供給の能力: | 月20セット |
| 試験規格: | ASTM D7097、ASTM D6335、Sh/T0834 | 保証: | 丸1年 |
|---|---|---|---|
| Trandmark: | 高度な機器 | OEMサービス: | 利用可能 |
| 言語: | 英語 | 電源: | AC（220±10％）V、50Hz |
| ソフトウェア言語: | 英語 | 試験方法: | テオストMht |
| 温度精度: | ±2℃ | サンプル量: | 8.4G |
| ガスの流れの速度: | 10ml±0.2ml | 手術: | 自動 |
| 温度範囲: | 周囲温度～500℃ | 試験時間: | 24時間 |
| ポンプ流れの速度: | 0.25g/Min | 画面: | 液晶 |
| ハイライト: | ASTM D7097 engine oil tester,oil oxidation stability tester,thermal oxidation deposits test machine |
||

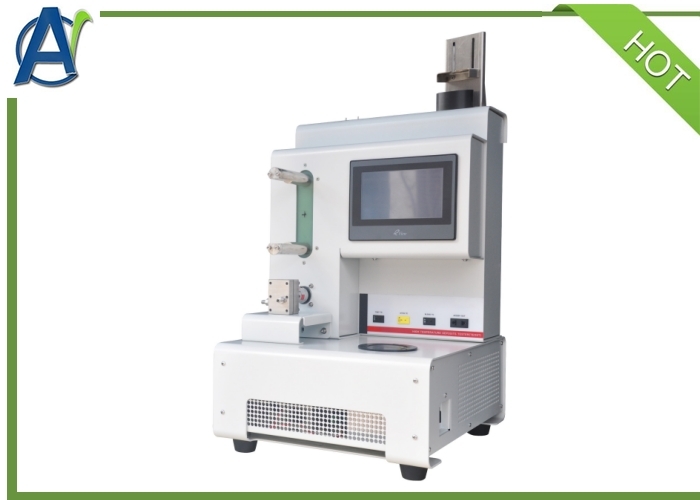

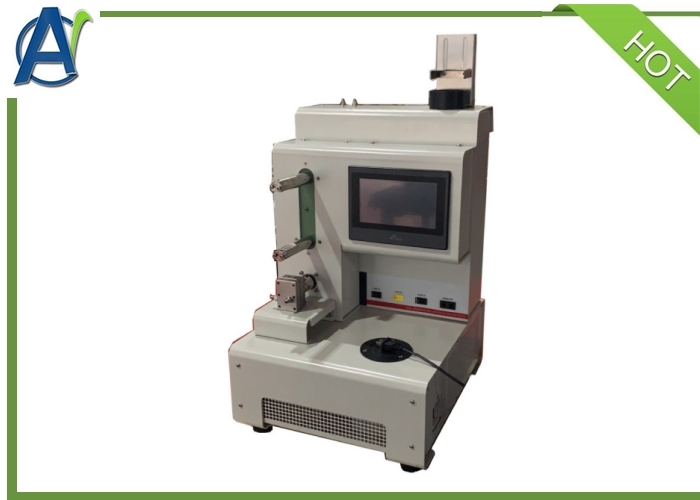

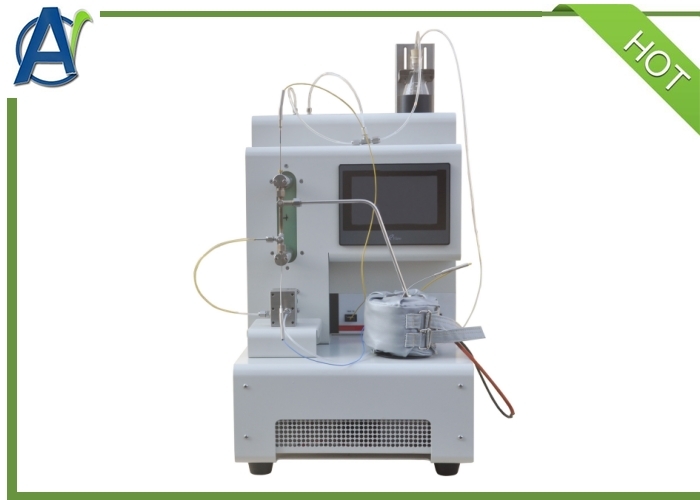

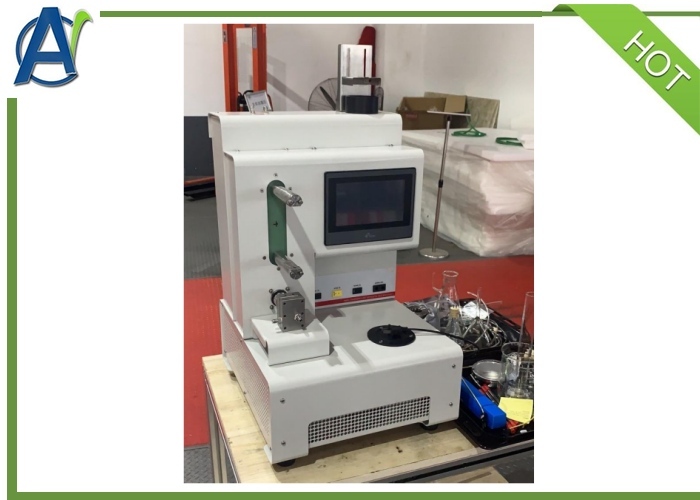

Thermal Oxidation Deposits Tester
I. Introduction:
High-Temperature Oxidation Deposits Tester is used for thermo-oxidation engine oil simulation test.This test method covers the procedure to determine the mass of deposit formed on a specially constructed test rod exposed to repetitive passage of 8.5 g of engine oil over the rod in a thin film under oxidative and catalytic conditions at 285 °C.
II. Main Features
1. This instrument can fully replace imported equivalent products.
2. All key components are imported, including temperature controller, deposition rod, gear pump, flow sensor and other core parts.
3. Presettable working time; the instrument will stop automatically after test completion.
4. Supporting optional accessory installation to meet test requirements of ASTM D6335 and SH/T0750 standards.
5. Equipped with catalytic magnetic mixing device with adjustable mixing time and mixing speed.
6. Built-in automatic electronic flow controller to stably and accurately control gas flow rate at 10ml±0.2ml/min.
7. Full parameter setting is completed via touch screen, and one-click test start is available after parameter configuration.
III. Specifications:
| Applicated standard | ASTM D7097 ,SH/T0834 |
| Test temperature | ambient~500ºC±2ºC |
| Test time | 24 hours |
| Sample quantity | 8.4g |
| Pump flow speed | 0.25g/min |
| Gas flow speed | 10ml±0.2ml |
| Power supply | AC220V 50HZ |
| Size | 450mm*450mm*560mm |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
