限られる高度の器械Co.
質およびサービスで進められるため!
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | AI |
| 証明: | ISO9001 |
| モデル番号: | AIC-6082 |
| 最小注文数量: | 1セット |
| 価格: | USD$4,500~5,000 |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 30日間 |
| 支払条件: | T/T、ウェスタンユニオン、L/C |
| 供給の能力: | 月20セット |
| 試験規格: | ASTM D217、ISO 2137 | 保証: | 丸1年 |
|---|---|---|---|
| Trandmark: | 高度な機器 | OEMサービス: | 利用可能 |
| 言語: | 英語 | 電源: | AC（220±10％）V、50Hz |
| アプライアンス: | 石油化学製品 | 測定範囲: | 0~620の貫通力 |
| 温度測定範囲: | 0.00～99.99℃ | ディスプレイ解像度: | 0.01℃ |
| 温度制御精度: | ≤±0.5℃ | 時間の表示と制御: | 0〜60秒（ランダムに設定）; |
| ハイライト: | Automatic grease penetrometer ASTM D217,Grease cone penetrometer ISO 2137,Oil test equipment with ASTM compliance |
||

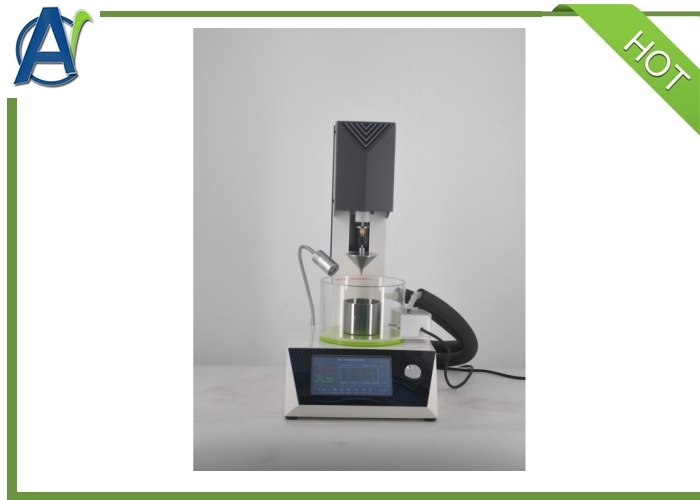

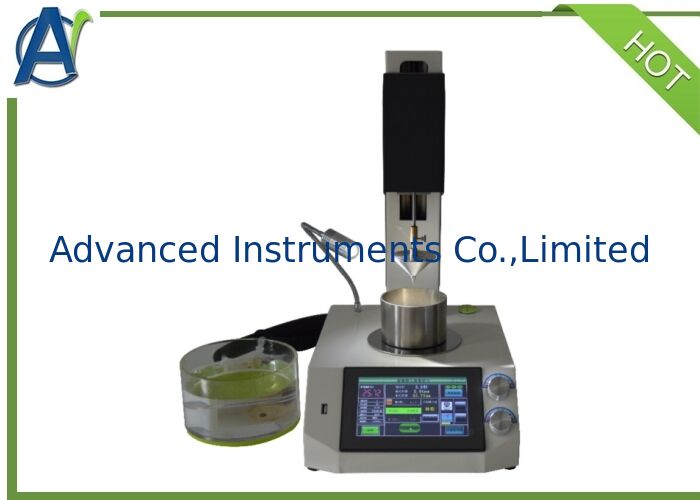

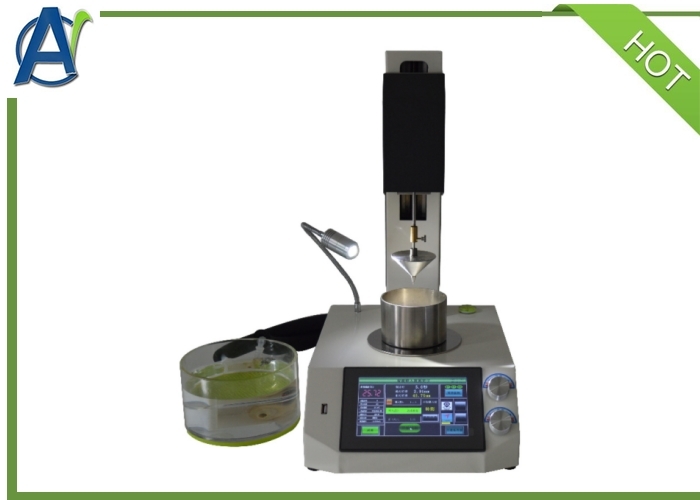

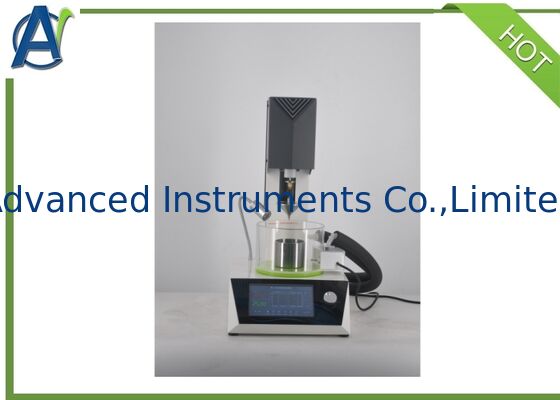

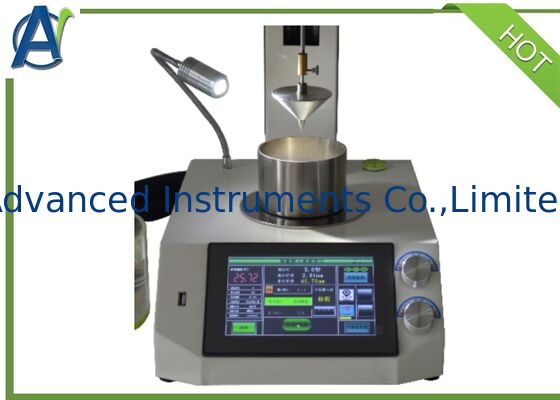

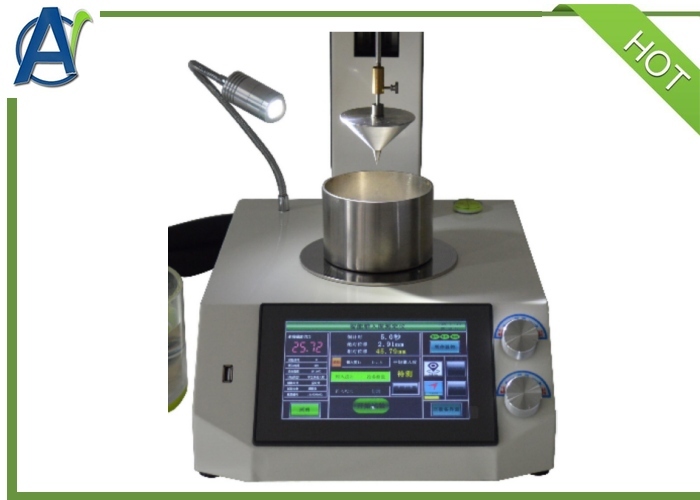

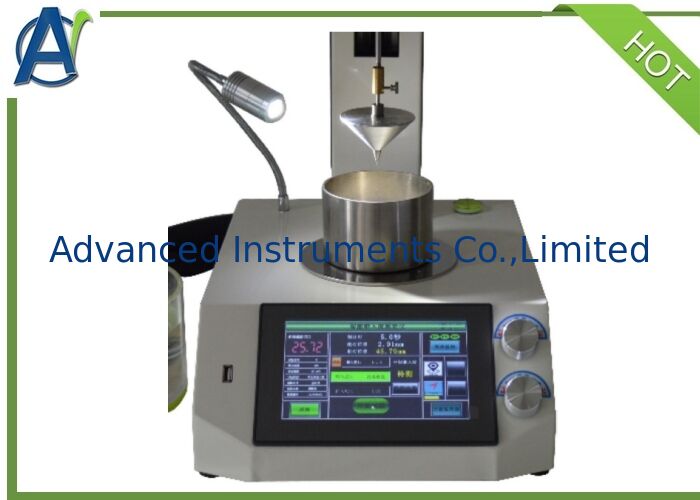

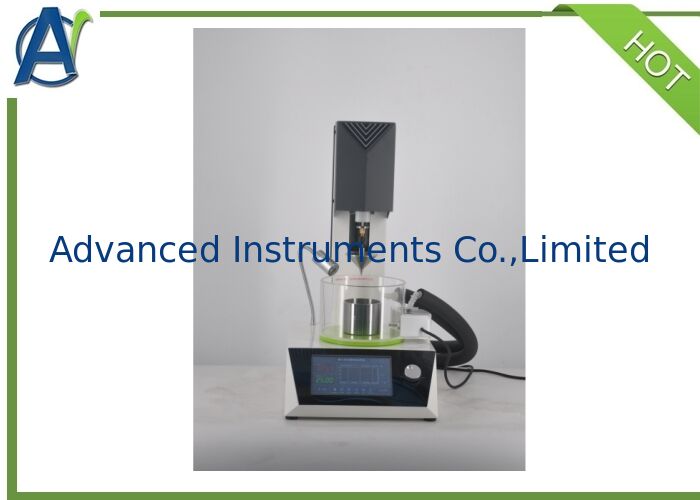

Automatic Grease Cone Penetrometer
I. Introduction:
The automatic grease cone penetration tester is an innovative patented product with independent knowledge designed and manufactured in accordance with the technical requirements and relevant regulations of the China standard GB/T 269-91 Determination of Cone Penetration of Lubricating Grease and Petrol Grease, and with reference to the international standard ISO2137 Determination of Cone Penetration of Lubricating Grease and Petroleum.
This instrument is mainly suitable for measuring the consistency of lubricating grease and petroleum grease, and can also be used for measuring the consistency of oil wax that has not undergone sweating and deoiling; This instrument also conforms to the testing performance specified in GB1790-2003 Pharmaceutical Vaseline. It is widely
used to measure the hardness and softness of lubricating grease, Vaseline, pharmaceutical Salve products or other semi-solid substances, and plays an important role in the process of design, quality control, and identification of product characteristics.
II. Main Features
III. Specifications:
| Measuring range | 0~620 penetration |
| Costant Water bath | Temperature measuring range:0.00~99.99℃; Temperature controlling range: Low temperature:About 15 ℃ lower than the ambient temperature High temperature:60.00℃; Display resolution:0.01℃; Temperature controlling accuracy:≤±0.5℃; |
| Time control | Time display and control: 0-60 seconds (setting at random); Display resolution:0.1 s; Timing accuracy: ≤ ± 0.1 S; |
| Displacement | Adopting high-precision LVDT displacement sensors and a split structure, the cone rod falls without friction. Range: 0-65mm; Display resolution:0.01mm (0.1 cone penetration); Relative displacement accuracy:≤ ± 0.1mm; |
| Data storage | 200 groups |
| Slide assembly | The total mass of the full size component is 150 ± 0.05g. Among them: Full size cone mass 102.5 ± 0.05g, cone rod mass 47.5 ± 0.05g; Comply with the requirements of GB/T 269-91 standard; |
| Overall dimension | 390mm×310mm×575mm(L×W×H) |
| Power supply | 220±10%VAC/50Hz; |
| Total power consumption | Max 350W |
| Weight | 12.5KG |
FAQ
What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
